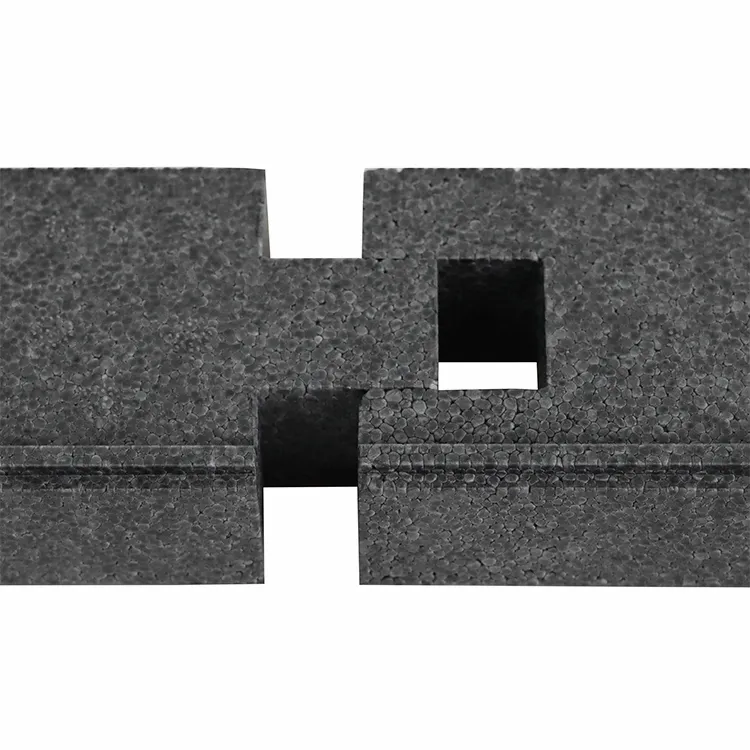

  • MTF-System-P Stecksystem

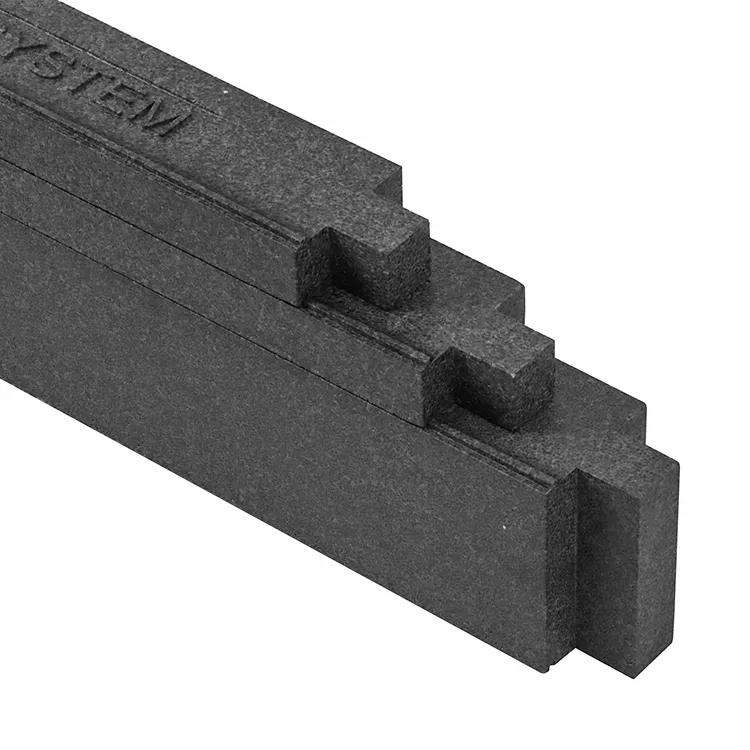

  • MTF-System-P Stecksystem vertikal

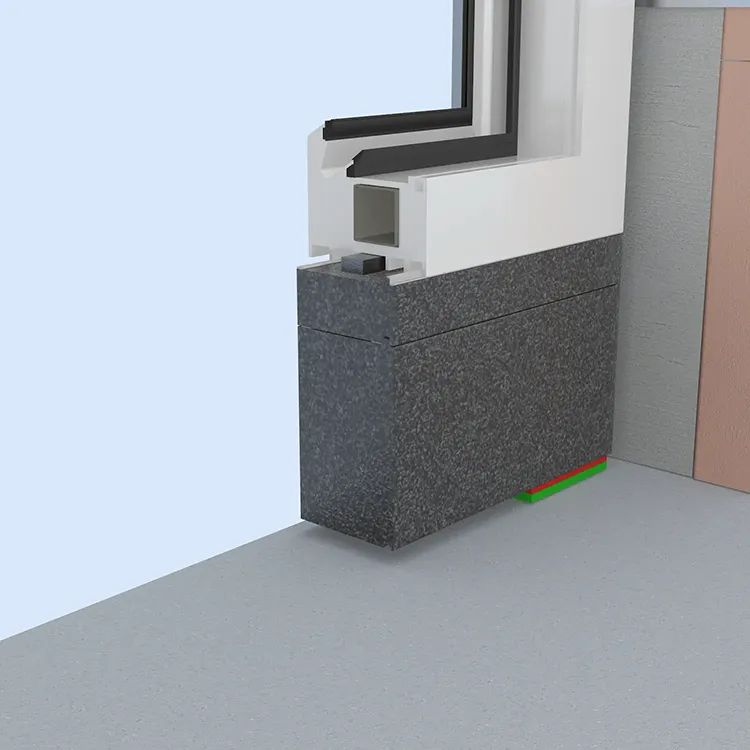

  • MTF-System-P Querschnitt Betonsohle

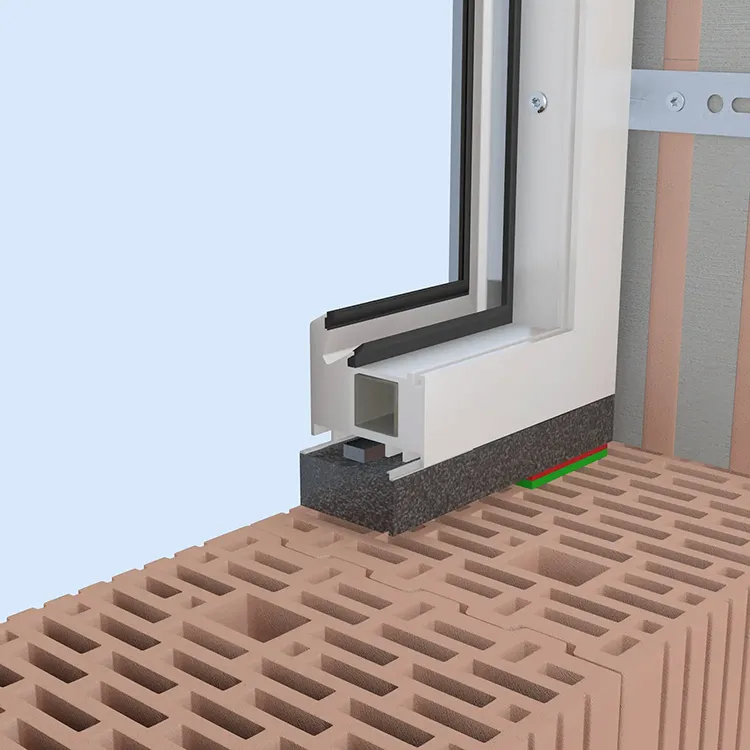

  • MTF-System-P Querschnitt Hochlochziegel

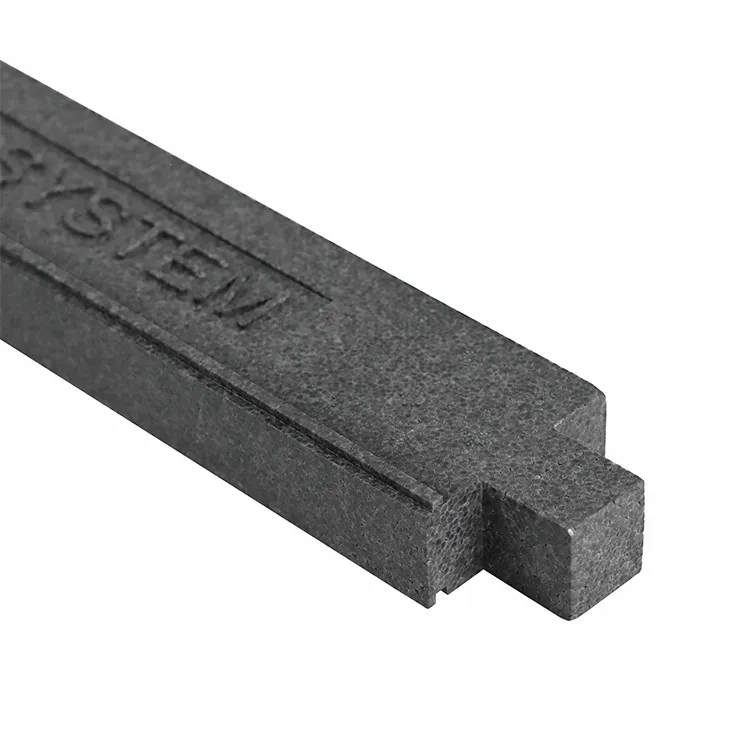

Junction Profile - MTF-System-P

  • connection profile with good screw properties
  • solid profile
  • good insulating properties
  • connector system
  • processing without waste

Technical data

Data according to DIN EN 13163:2012+A1:2015

DesignationValue
materialEPS 150 kg/m³
thermal conductivity coefficient (U-value)≤ 0,041 W/(m∙K)
compressive strength / Compression strength at 10% deformation≥ 2500 kPa
bending strength≥ 750 kPa
dimensional stability± 0,2 %
long-term water absorption through immersion≤ 1,5 %
fire behaviourClass E

Article sizes

Article-No.Article name [mm]
width x height		LengthUnitsDiagram
K-40608111MTF-System-P 67x301200 mm1PDF
K-40608116MTF-System-P 67x501200 mm1PDF
K-40608118MTF-System-P 67x801200 mm1PDF
K-40608121MTF-System-P 67x1001200 mm1PDF
K-40608126MTF-System-P 67x1301200 mm1PDF
K-40608130MTF-System-P 67x1501200 mm1PDF
K-40608134MTF-System-P 67x1801200 mm1PDF
K-40608140MTF-System-P 67x2001200 mm1PDF
