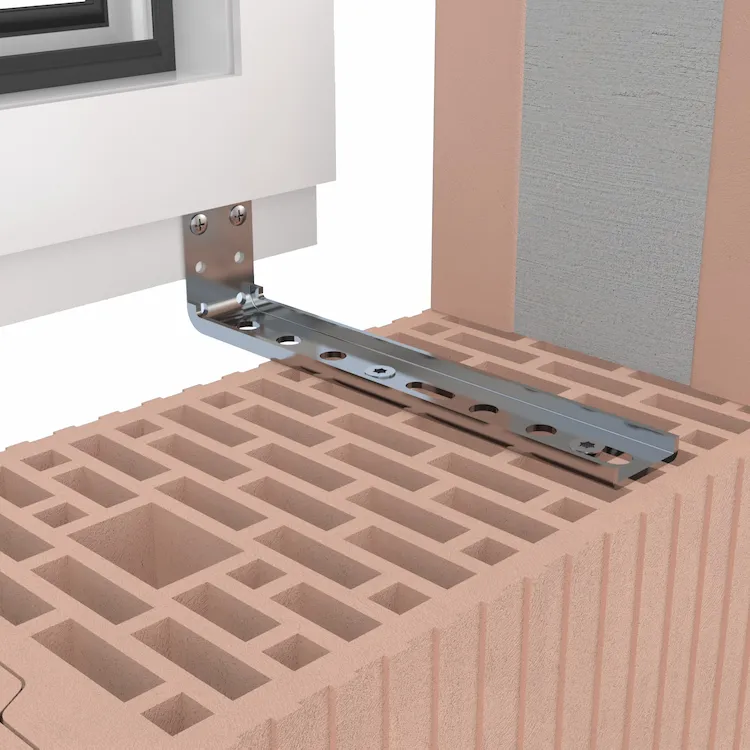

F-U-P-FMW - Flat-U-Profile Window Mounting Angle
- for window mounting from below in the insulation layer
- offers several options for mounting to the masonry
- blocking-free mounting
- no thermal bridges
- flat connection for the attachment of sealing foils
- maximum load tested by ift Rosenheim
- suitable for fall-proof window mounting
- tested according to ETB guideline (ift Rosenheim):
18-003796-PR06 PB-K26-09-de-01
Article sizes
| Article-No. | Article name [mm] length 1 x length 2 x material thickness | Units | Diagram |
|---|---|---|---|
| K-405240 | F-U-P-FMW-30x160x2,5 | 50 | |
| K-405241 | F-U-P-FMW-50x160x2,5 | 50 | |
| K-405242 | F-U-P-FMW-70x165x2,5 | 50 | |
| K-405243 | F-U-P-FMW-30x205x2,5 | 50 | |
| K-405244 | F-U-P-FMW-50x210x2,5 | 50 | |
| K-405245 | F-U-P-FMW-70x215x2,5 | 50 | |
| K-405246 | F-U-P-FMW-30x255x2,5 | 50 | |
| K-405247 | F-U-P-FMW-50x260x2,5 | 50 | |
| K-405248 | F-U-P-FMW-70x265x2,5 | 50 | |
| K-405249 | F-U-P-FMW-30x280x2,5 | 50 | |
| K-405250 | F-U-P-FMW-50x285x2,5 | 50 | |
| K-405251 | F-U-P-FMW-70x290x2,5 | 50 |
