FMW-H - Height Adjustable

for window fastening at the bottom of the insulation layer level
for height differences from 65 mm to a maximum of 230 mm
steplessly adjustable blocking

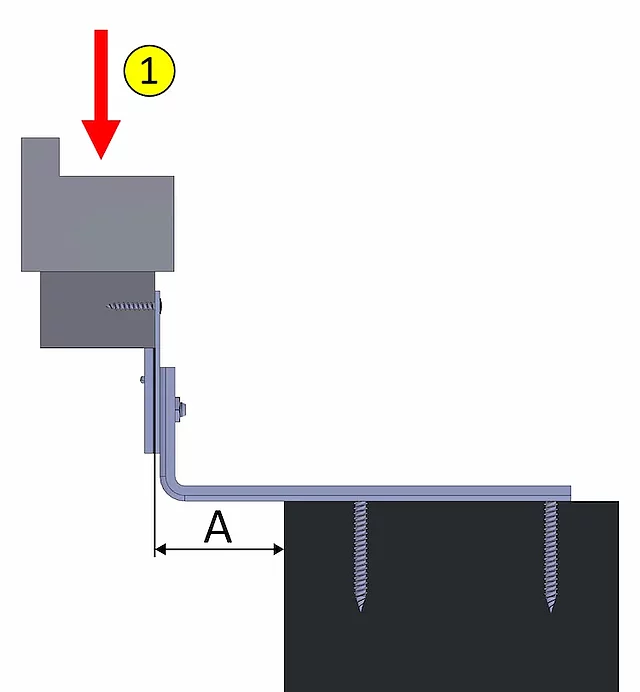

Load transfer FMW-H

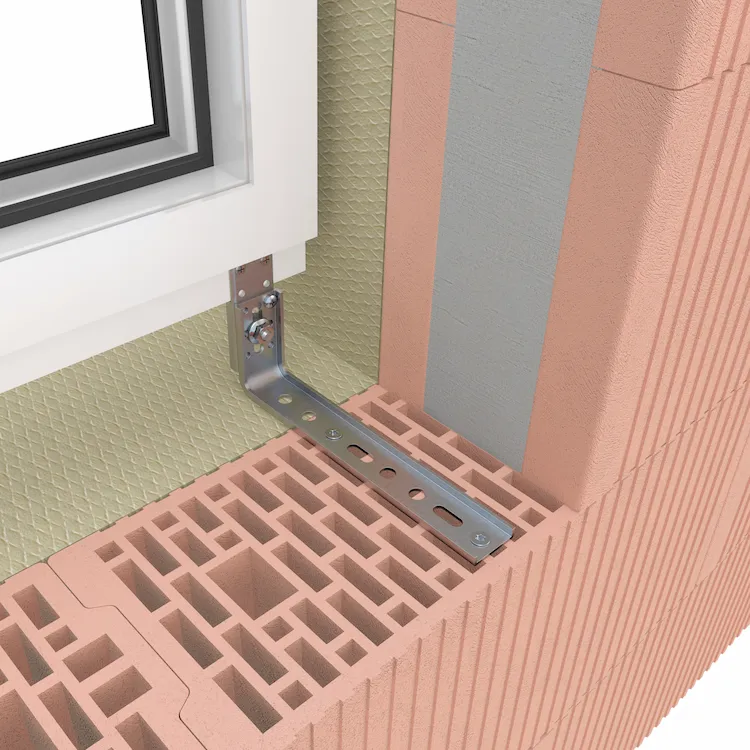

FMW-H with U-Profile

Article-No.	Article name [mm] adjustable height x lower shank	adjustable height	Units	Diagram
K-40513182	FMW-H-F-50-80x210	65 - 85 mm	10	PDF
K-40513190	FMW-H-U-80-140x215	85 - 120 mm	10	PDF
K-405132	FMW-H-U-120-185x105	120-185 mm	10	PDF
K-405133	FMW-H-U-150-225x135	150-225 mm	10	PDF

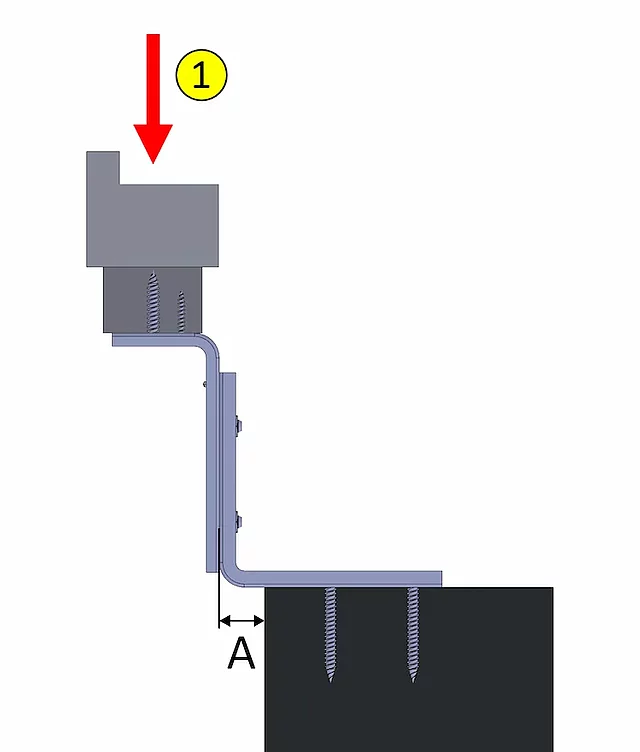

Load transfer FMW-H-W

FMW-H with FMW

Article-No.	Article name [mm] adjustable height x lower - upper shank	adjustable height	Units	Diagram
K-405130	FMW-H-W-105-155x105-65	105-155 mm	10	PDF
K-405131	FMW-H-W-145-230x135-65	145-230 mm	10	PDF

Load transfer, test reports

1 ift Rosenheim verification number
Tested for loads in the window layer: 14-002150-PR01 PB-K26-09-de-01

material thickness	maximum load / overhang A
material thickness	30 mm	50 mm	70 mm	100 mm	130 mm	160 mm
3,0 mm	208 kg*	160 kg*	114 kg	44 kg	27 kg	14 kg

*approximate value based on test reports
