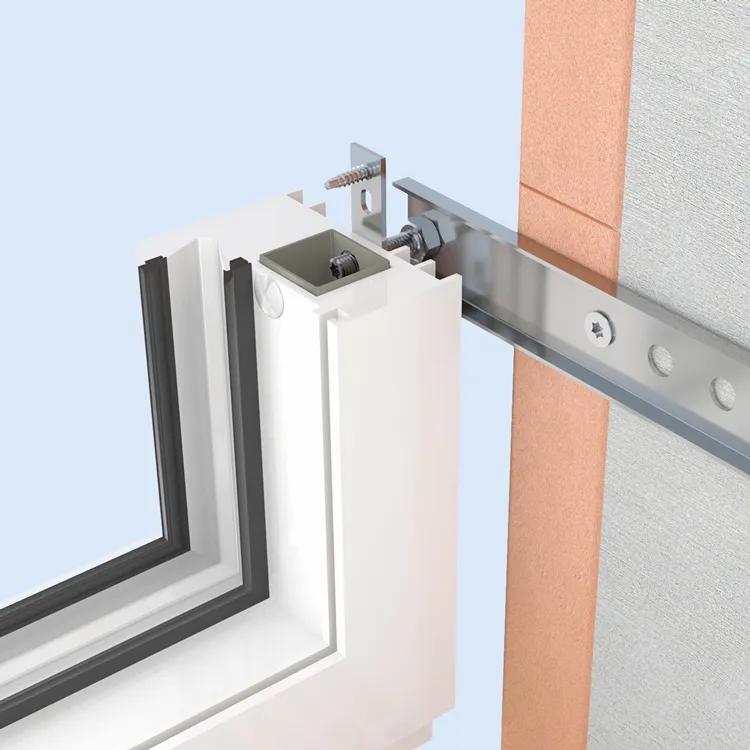

SFK-Anchor - U-Profile


  • suitable for all window systems (aluminium, wood, plastic)
  • window can be readjusted after plastering
  • window mounting without visible dowel holes
  • well-suited for fixed windows with glued in glazing
  • easily adjustable wedging
  • maximum load tested by ift-Rosenheim
  • suitable for fall-proof window mounting
Article-No.Article name [mm]UnitsDiagram
K-148995SFK-150x1,5-4050 PDF
K-149004SFK-150x1,5-6050 PDF
K-148996SFK-150x2,5-4050 PDF
K-149004-2SFK-150x2,5-6050 PDF
K-149000SFK-200x1,5-4050 PDF
K-149005SFK-200x1,5-6050 PDF
K-149000-2SFK-200x2,5-4050 PDF
K-149005-2SFK-200x2,5-6050 PDF
K-149001SFK-250x2,5-4050 PDF
K-149006SFK-250x2,5-6050 PDF
K-149001-3SFK-250x3,0-4050 PDF
K-149006-3SFK-250x3,0-6050 PDF
K-149002SFK-300x3,0-4050 PDF
K-149007SFK-300x3,0-6050 PDF
K-149003SFK-350x3,0-4050 PDF
K-149008SFK-350x3,0-6050 PDF

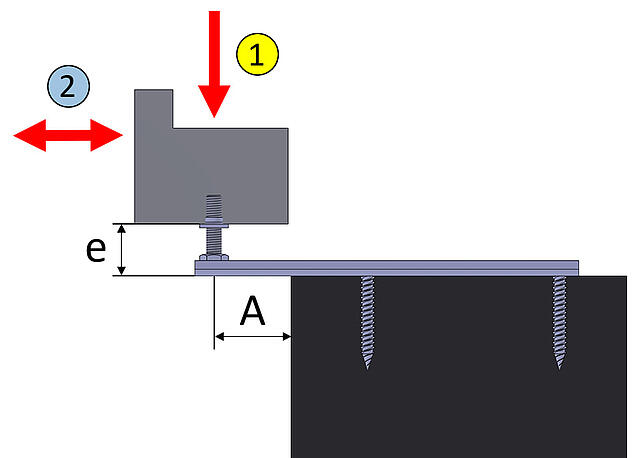

1: ift-Rosenheim verification number
Tested for loads in the window layer: 11-003442-PR06, 14-002150-PR01, 18-003796-PR01

Material thicknessMaximum load / bearing out A
30 mm50 mm70 mm100 mm130 mm160 mm
1,5 mm136 kg80 kg44 kg  -  -  -
2,5 mm175 kg110 kg58 kg27 kg*14 kg*8 kg*
3,0 mm208 kg*160 kg*114 kg44 kg27 kg14 kg

*approximate value based on test reports

2: ift-Rosenheim verification number
Tested for loads right-angled to the window layer: 18-000650-PR01

Tested gap with eMaximum load
20 mm170 kg

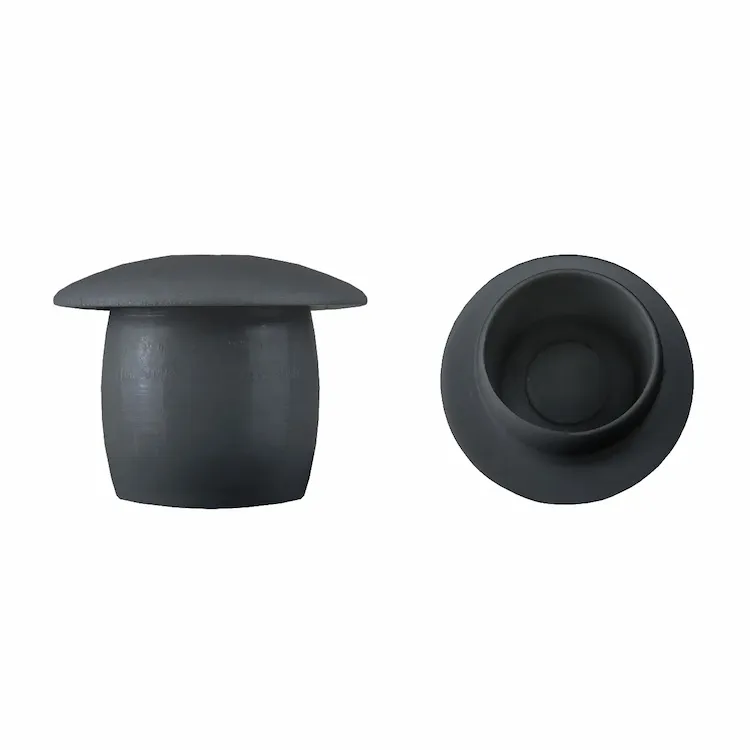

Article-No.Article nameUnits

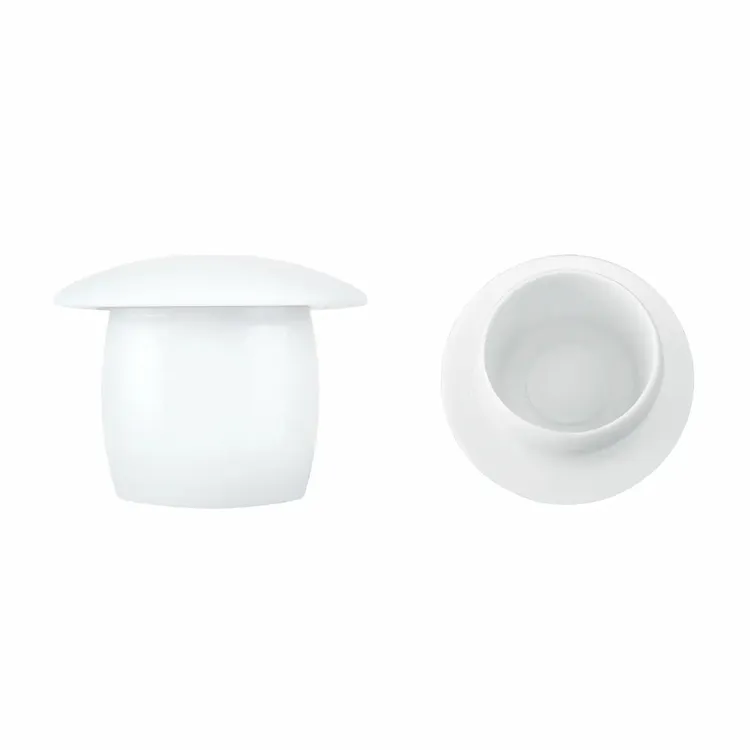

K-148010Cover Cap Ø10,5 white50

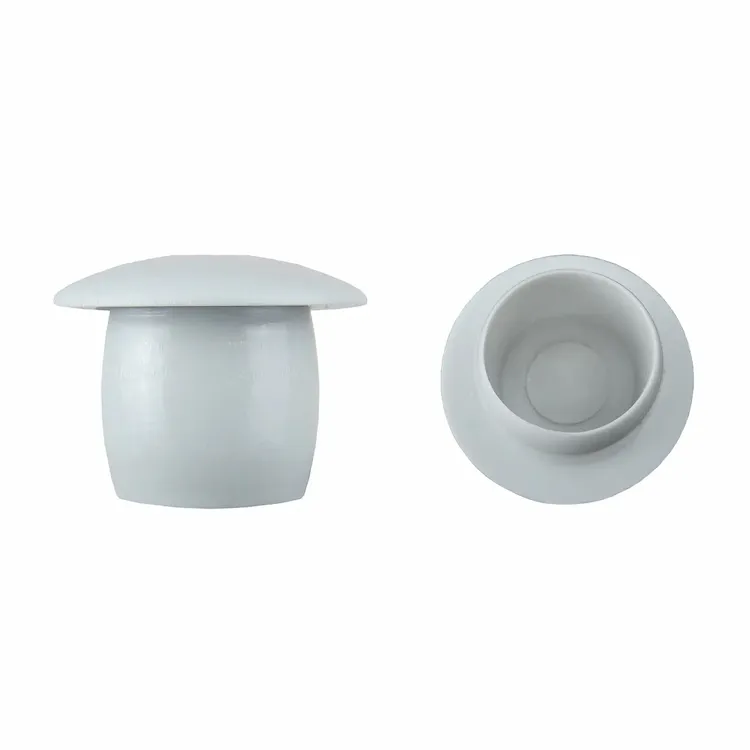

K-148013Cover Cap Ø10,5 grey50

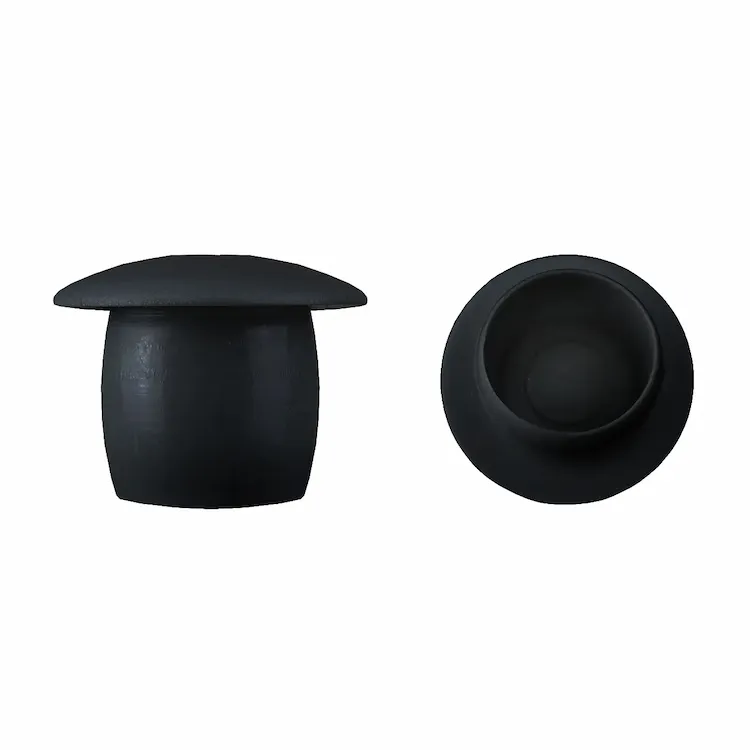

K-148015Cover Cap Ø10,5 black50
