J-Strut

Article sizes

Article-No.	Article name [mm] length x material thickness - threaded pin - adjustable height	adjustable height	Units	Diagram
K-000432	J-Strut-300x3,0-M12x80-115	80 - 115 mm	25	PDF
K-000435	J-Strut-300x3,0-M12x115-205	115 - 205 mm	25	PDF
K-000438	J-Strut-300x3,0-M12x160-270	160 - 270 mm	25	PDF

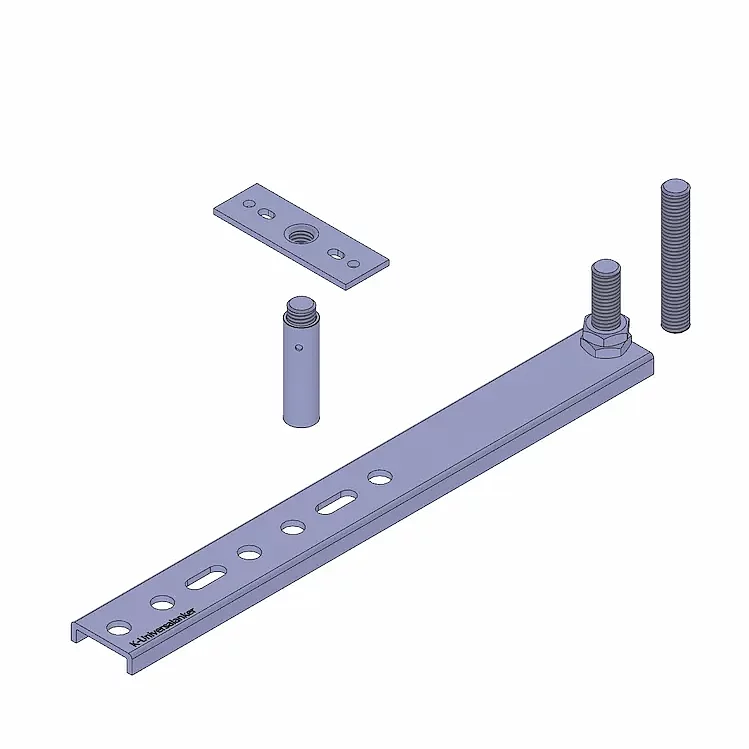

Scope of delivery per item: 1x U-Profile, 1x sleeve, 1x Adjusting Element M12, 3x hexagon nut, threaded bolt: 1x M12x50, 1x M12x70

1 ift Rosenheim Prüfnummer
U-Profil geprüft auf Lasten in der Fensterebene:
14-002150-PR01 PB-K26-09-de-01

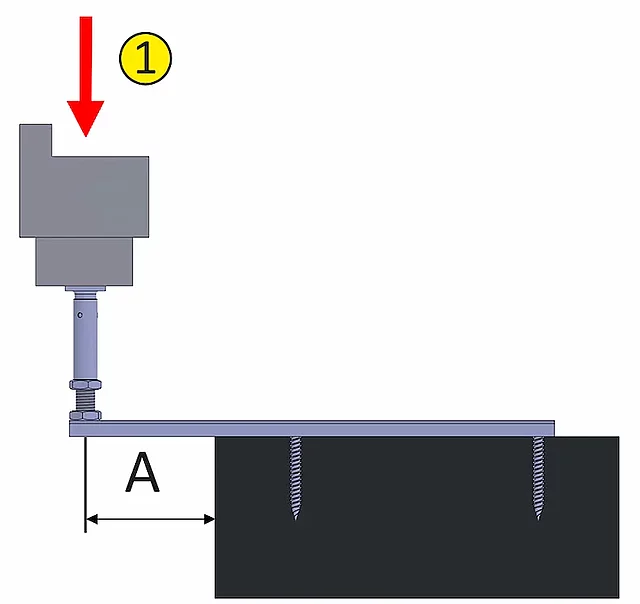

material thickness	maximum load / overhang A
material thickness	30 mm	50 mm	70 mm	100 mm	130 mm	160 mm
3,0 mm	208 kg*	160 kg*	114 kg	44 kg	27 kg	14 kg

*approximate value based on test reports
