Drills

HLZ – Vertically Perforated-Lattice Brick-Drills

HLZ-FR – Milling Drill

HLZ-FR

up to 200% more support of the dowel
drilling without impact
maximum rotational speed of 1.600 U/min
Note: When drilling, contact with the masoned joints and finished plastering should be avoided for the optimal service life.

The HLZ-Milling mills easily without impact in vertically perforated bricks and air bricks. Therefore, a neat drill and an increase of the holding force for the dowel up to 200% over conventional drills are received.

Article sizes

Article-No.	Article name [mm]	Ø Head	Length	Shank	Working length	Units
K-000020	HLZ-FR-10,3x200-SDS	10,3 mm	200 mm	SDS-plus	150 mm	1
K-000021	HLZ-FR-6,3x263-SDS	6,3 mm	263 mm	SDS-plus	213 mm	1

HLZ-ST - Auger Drill

HLZ-ST

developed to avoid damaging the thin structure of modern energy-saving bricks
drilling without impact
Note: Only apply low pressure.

Article sizes

Article-No.	Article name [mm]	Ø Head	Length	Shank	Working length	Units
K-000039	HLZ-ST-5,0x400-BF	5,0 mm	400 mm	Chuck	320 mm	1
K-000046	HLZ-ST-10,0x300-BF	10,0 mm	300 mm	Chuck	220 mm	1

HSS-ST - Auger Drill

HSS-ST

suitable for widening profiles (plastic, steel and aluminium)
drilling without impact
precise and shatterproof

Article sizes

Article-No.	Article name [mm]	(Ø) Head	Total length	Shank	Working length	Units
K-00004850	HSS-ST-5,9x500-BF	5,9 mm	500 mm	Chuck	420 mm	5

HSS-SP - Twist Drill

HSS - Auger Drill

with stepped shaft, suitable for cordless screwdrivers
for robust drilling work

Article sizes

Article-No.	Article name [mm]	Diameter (Ø)	Total length	Shank	Working length	Units
K-00004540	HSS-SP DIN 338 type N stepped 10/14,0x160	14 mm	160 mm	10 mm stepped	108 mm	1

MZ - Multi-Purpose Drills

MZ-SP - Spiral-Drill

MZ-SP

drill without impact; shortened SDS intake prevents impact drilling
developed to avoid damaging the thin structure of modern energy-saving bricks
universally applicable: solid bricks, roof tiles, wood, plastic, metal
Note: When working with energy-saving bricks, apply low pressure only.

Article sizes

Article-No.	Article name [mm]	Ø Head	Length	Shank	Working length	Units
K-000034	MZ-SP-6,0x310-SDS	6 mm	310 mm	SDS-plus fitting	250 mm	1
K-000036	MZ-SP-8,0x200-BF	8 mm	200 mm	Chuck	135 mm	1
K-000036-01	MZ-SP-8,0x210-SDS	8 mm	210 mm	SDS-plus fitting	150 mm	1
K-000036-02	MZ-SP-8,0x260-SDS	8 mm	260 mm	SDS-plus fitting	200 mm	1
K-000037	MZ-SP-8,0x400-BF	8 mm	400 mm	Chuck	300 mm	1
K-000038	MZ-SP-10,0x260-SDS	10 mm	260 mm	SDS-plus fitting	200 mm	1

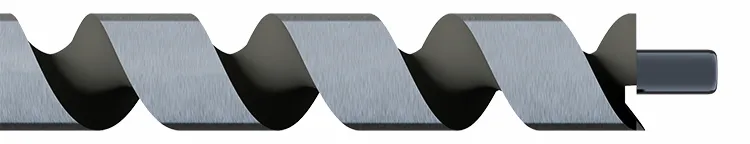

Wood Auger

Auger

wood drill
well suited for cutting free the insulation in the roller shutter box
very precise drilling
sharp cutting edges

Article sizes

Article-No.	Article name [mm]	Ø Head	Length	Shank	Working length	Units
K-01530322	Schlangenbohrer-8,0x460-6kS	8 mm	460 mm	hexagonal shank	380 mm	1
K-01530370	Schlangenbohrer-10,0x600-6kS	10 mm	600 mm	hexagonal shank	530 mm	1
K-01530410	Schlangenbohrer-12,0x600-6kS	12 mm	600 mm	hexagonal shank	530 mm	1
K-01530461	Schlangenbohrer-14,0x600-6kS	14 mm	600 mm	hexagonal shank	530 mm	1
K-01530502	Schlangenbohrer-16,0x460-6kS	16 mm	460 mm	hexagonal shank	380 mm	1
K-01530530	Schlangenbohrer-18,0x460-6kS	18 mm	460 mm	hexagonal shank	380 mm	1
K-01530561	Schlangenbohrer-22,0x460-6kS	22 mm	460 mm	hexagonal shank	380 mm	1
K-01530604	Schlangenbohrer-24,0x460-6kS	24 mm	460 mm	hexagonal shank	380 mm	1
K-01530635	Schlangenbohrer-26,0x460-6kS	26 mm	460 mm	hexagonal shank	380 mm	1

Hammer Drills

FORCE-X

Hammer Drill

impact drilling
for reinforced concrete
4 solid carbide cutting edges

Article sizes

Article-No.	Article name [mm]	Ø Head	Length	Shank	Working length	Units
K-01508280	FORCE-X-8,0x210-SDS	8 mm	210 mm	SDS-plus	150 mm	1
K-01508320	FORCE-X-8,0x450-SDS	8 mm	450 mm	SDS-plus	400 mm	1
K-01508370	FORCE-X-10,0x600-SDS	10 mm	600 mm	SDS-plus	550 mm	1
K-01508410	FORCE-X-12,0x600-SDS	12 mm	600 mm	SDS-plus	550 mm	1
K-01508450	FORCE-X-14,0x600-SDS	14 mm	600 mm	SDS-plus	550 mm	1
K-01508500	FORCE-X-18,0x600-SDS	18 mm	600 mm	SDS-plus	550 mm	1

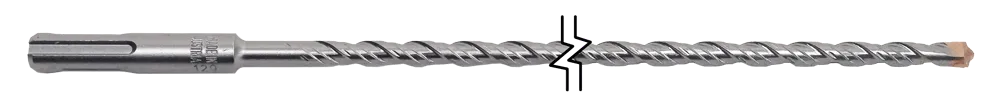

F4 FORTE

F4 FORTE

drilling with impact in concrete, natural stone and masonry
carbide plate with excellent centering properties
4-fold step profile for fast drill dust delivery
low wear, long tool life

Article sizes

Article-No.	Article name [mm]	Diameter (Ø)	Length	Working length	Shank	Units
K-01509100	F4-FORTE-6,5x450-SDS	6,5 mm	450 mm	400 mm	SDS-plus	1

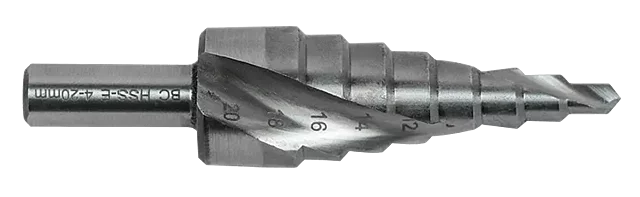

Step Drill

specially adapted to Ø18 mm holes for our Widening Stabiliser
drills through sheet steel or stainless steel up to 2 mm thick
with spiral groove and cross cut

Article sizes

Article-No.	Article name [mm]	Diameter (Ø)	Length	Working length	Shank	Units
K-01509100	Step Drill	4 - 18 mm	75 mm	54 mm	3-surface shaft	1

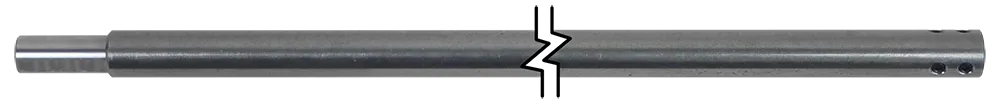

Extension

for pre-drilling of widening profiles

Article sizes

Article-No.	Article name [mm]	Diameter (Ø)	Length	Working length	Shank	Units
K-01530890	Extension	16 mm	500 mm	470 mm	3-surface shaft	1

Step Drill + Extension

set consisting of step drill and extension
for pre-drilling of widening profiles

Article sizes

Article-No.	Article name [mm]	Diameter (Ø)	Length	Working length	Shank	Units
K-01530900	Step Drill + Extension	4 - 18 mm	554 mm	524 mm	3-surface shaft	1

Countersinks

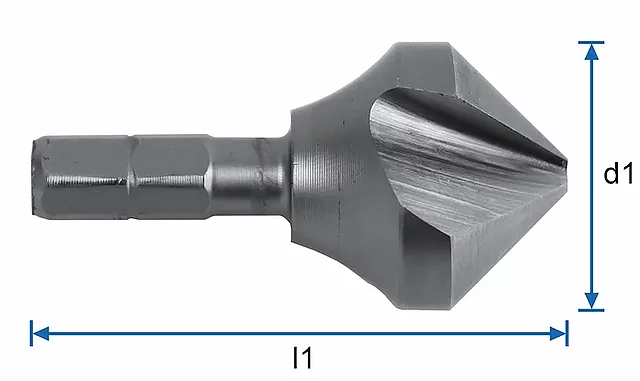

HSS countersink 90° - 1/4" hexagonal shank

for countersinking, chamfering and deburring metal and plastic
wear-resistant and precise
1/4" hexagonal shaft

Article sizes

Article-No.	Article name [mm]	d1 [mm]	l1 [mm]	Units
K-01530964	HSS countersink 90° - 1/4" hexagonal shank - 12,40 mm	12,4	35	1
K-01530967	HSS countersink 90° - 1/4" hexagonal shank - 16,50 mm	16,5	40	1
K-01530970	HSS countersink 90° - 1/4" hexagonal shank - 20,50 mm	20,5	41	1

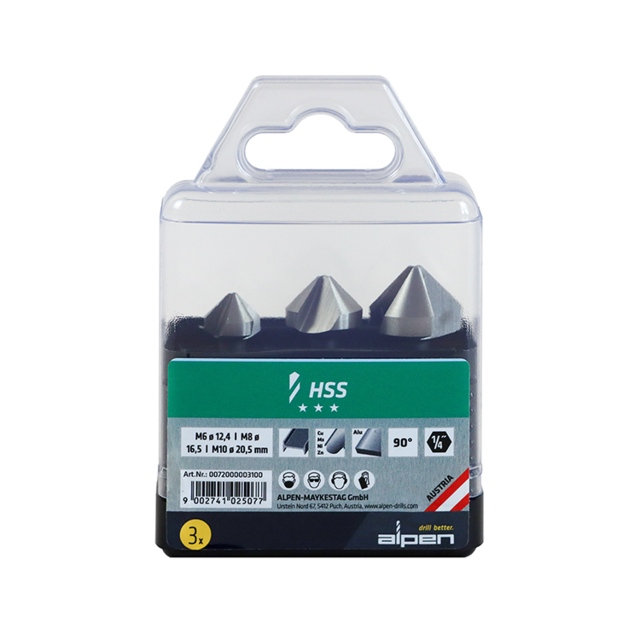

Box-Set with all three sizes

Article-No.	Article name [mm]	Units
K-01530975	HSS countersink 90° - 1/4" hexagonal shank - set	1
Scope of delivery per item: HSS countersink 90° - 1/4" hexagonal shank - 12.40 mm, 16,50 mm, 20,50 mm, 1x plastic case
