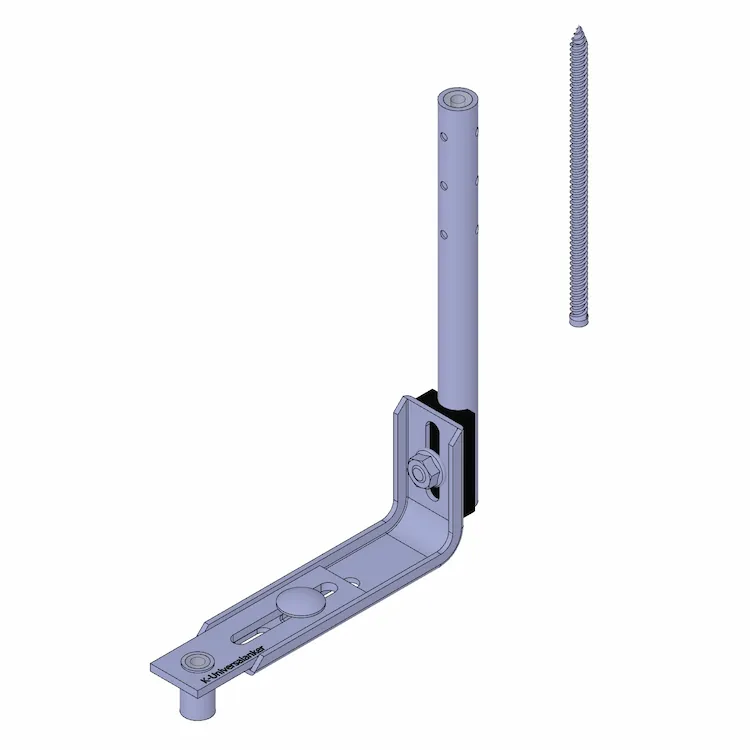

RK-Fixed-DS - Direct screw

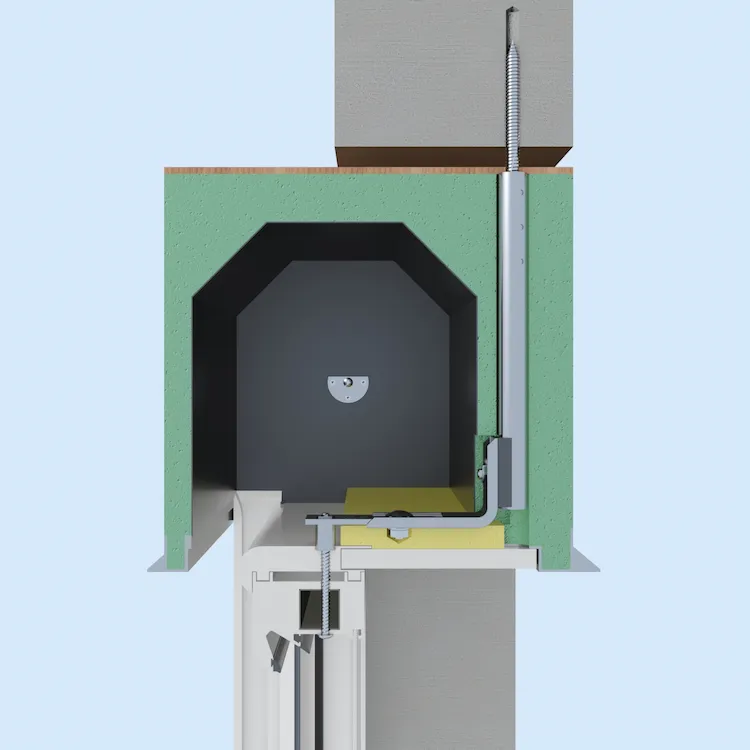

  • for simple window mounting at the top in the roller shutter box
  • suitable for all box systems
  • mounting position is cut free by drilling
  • can be pre-mounted by the box manufacturer
  • transfers forces (wind load, opening and closing of casements) directly to the internal concrete ceiling or lintel
  • with thermal separation
  • fixed directly to the lintel with a window mounting screw

Article sizes

Article-No.Article name [mm]tube lengthadjustable depthUnitsDiagram
K-40020872RK-Fixed-DS-11,5-205205 mm145 - 195 mm5PDF
K-400210RK-Fixed-DS-11,5-245245 mm145 - 195 mm5PDF
40021014RK-Fixed-DS-11,5-285285 mm145 - 195 mm5PDF
Additional sizes are available on request.
