FMW-U-Profile with Adjusting Element
- simple and fast mounting of windows inside the insulating layer

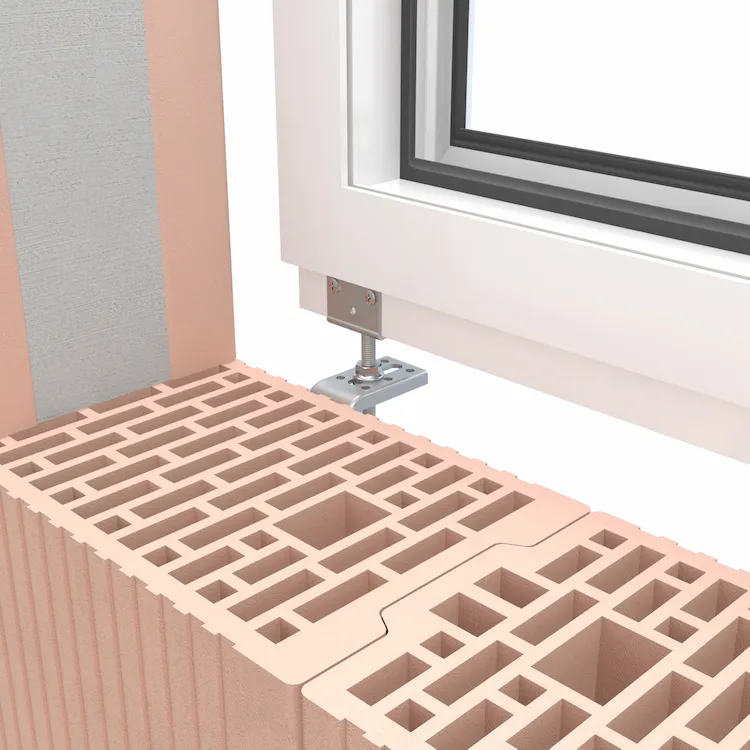

- with angle connection, suitable for mounting from below

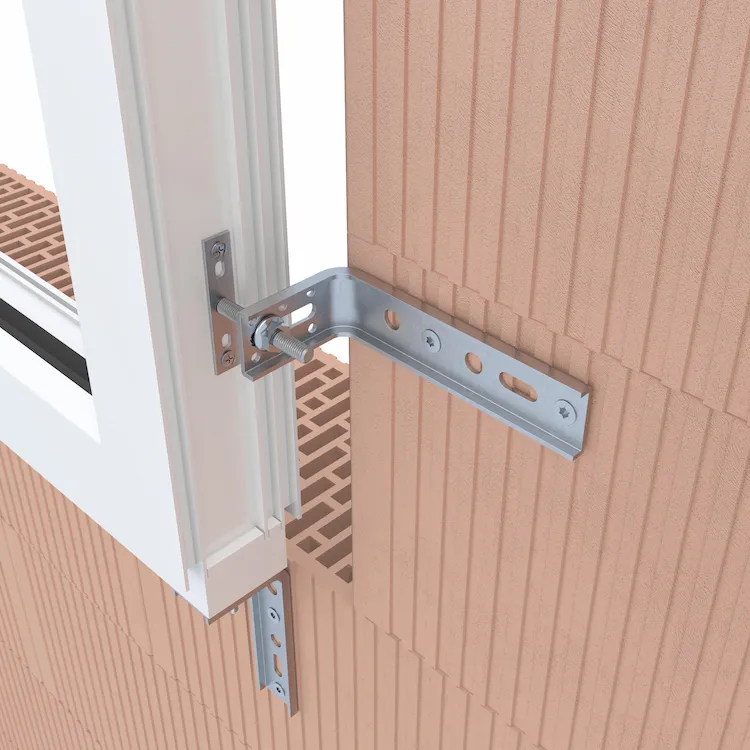

- with flat connection, suitable for mounting from below and lateral
- suitable for all window systems (aluminum, wood, plastic)
- the angles are adjustable in three dimensions in order to be able to compensate structural tolerances
- easily adjustable wedging
- maximum load tested by ift Rosenheim
Article sizes
| Article-No. | Article name [mm] length 1 x length 2 x material thickness - adjusting element | connection | Units | Diagram | |
|---|---|---|---|---|---|
| K-405128 | FMW-65x145x2,5-F60 | Flat connection | 50 | ||
| K-405129 | FMW-95x140x3,0-F60 | Flat connection | 50 | ||
| K-405135 | FMW-65x145x2,5-W60 | Angle connection | 50 | ||
| K-405136 | FMW-95x140x3,0-W60 | Angle connection | 50 | ||
| Scope of delivery per item: 1x FMW-U-Profile, 1x Adjusting Element | |||||
1 ift Rosenheim verification number

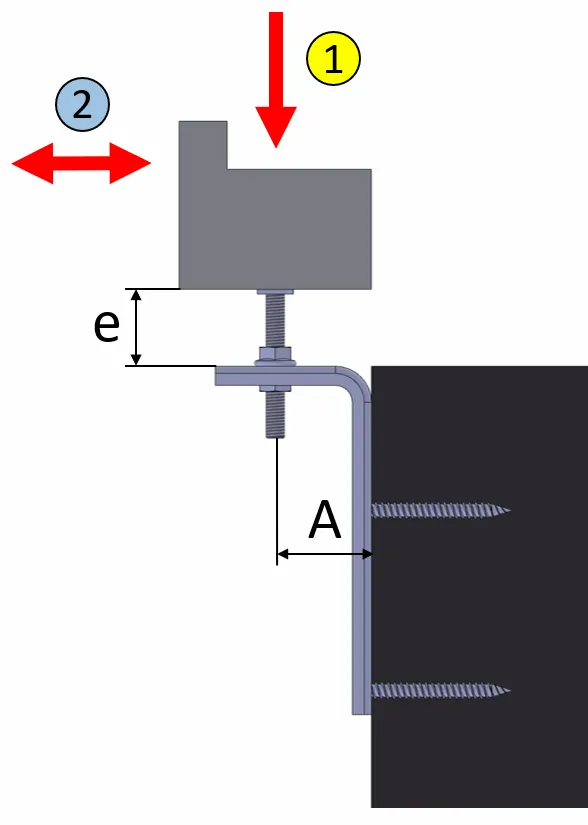

Tested for loads in the window layer:
11-003442-PR06 PB-K26-09-de-01, 12-002151-PR04, 14-002150-PR02, 17-001190-PR01 PB 01-K26-09-de-01
| Material thickness | Maximum load / overhang A | |||||||
|---|---|---|---|---|---|---|---|---|
| 25 mm | 35 mm | 40 mm | 55 mm | 57 mm | 60 mm | 87 mm | 143 mm | |
| 2,5 mm | min 212 kg | 170 kg | 140 kg* | 68 kg | 60 kg* | 50 kg* | 34 kg | - |
| 3,0 mm | min 347 kg | 347 kg | 270 kg* | 147 kg | 143 kg* | 139 kg | 66 kg | 16 kg |
*approximate value based on test reports
