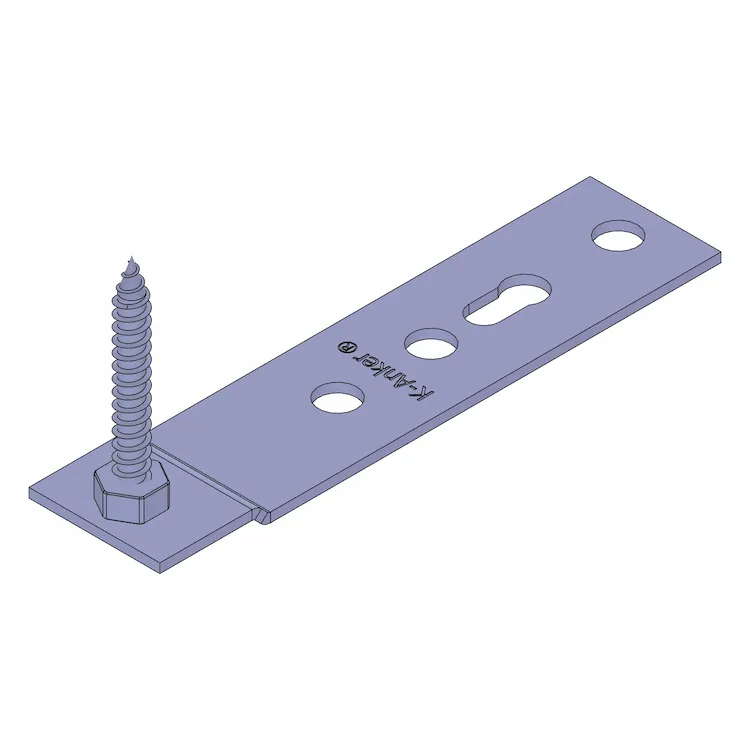

FMS-Anchor - Flat Steel

  • suitable for all window systems (aluminium, wood, plastic)
  • window mounting without visible dowel holes
  • well-suited for fixed windows with glued in glazing
  • easily adjustable wedging

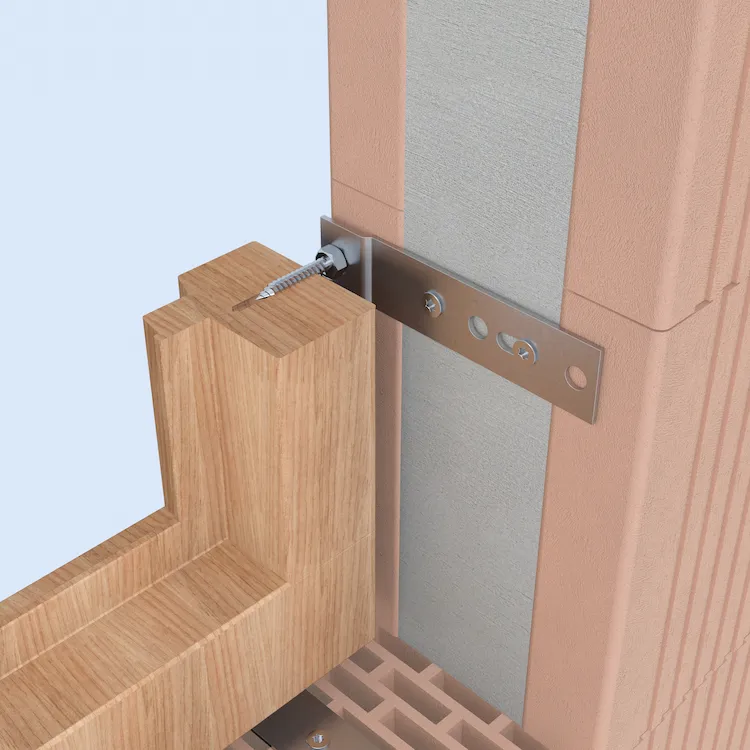

  • for mounting in the reveal
  • suitable for fall-proof window mounting
  • resistance class RC2 tested, PIV test number: 45-6/21

Article sizes

Article-No.Article name [mm]
length x material thickness - screw
ScrewUnitsDiagram
K-14909297FMS-125x1,5-F-7,5x040Ø7,5 x 40 mm50
K-14909302FMS-125x1,5-F-7,5x050Ø7,5 x 50 mm50
K-14909307FMS-125x1,5-F-7,5x070Ø7,5 x 70 mm50PDF
K-14909312FMS-125x1,5-F-7,5x110Ø7,5 x 110 mm50PDF
K-14909404FMS-125x2,5-F-7,5x040Ø7,5 x 40 mm50PDF
K-14909450FMS-125x2,5-F-7,5x050Ø7,5 x 50 mm50PDF
K-149095-FFMS-125x2,5-F-7,5x060Ø7,5 x 60 mm50PDF
K-14909505FMS-125x2,5-F-7,5x070Ø7,5 x 70 mm50PDF
K-14909510FMS-150x1,5-F-7,5x040Ø7,5 x 40 mm50
K-14909530FMS-150x1,5-F-7,5x050Ø7,5 x 50 mm50
K-14909550FMS-150x1,5-F-7,5x070Ø7,5 x 70 mm50PDF
K-14909570FMS-150x1,5-F-7,5x110Ø7,5 x 110 mm50PDF
K-149110-FFMS-150x2,5-F-7,5x040Ø7,5 x 40 mm50PDF
K-149115-FFMS-150x2,5-F-7,5x050Ø7,5 x 50 mm50PDF
K-149120-FFMS-150x2,5-F-7,5x060Ø7,5 x 60 mm50PDF

Additional screw lengths are available on request.

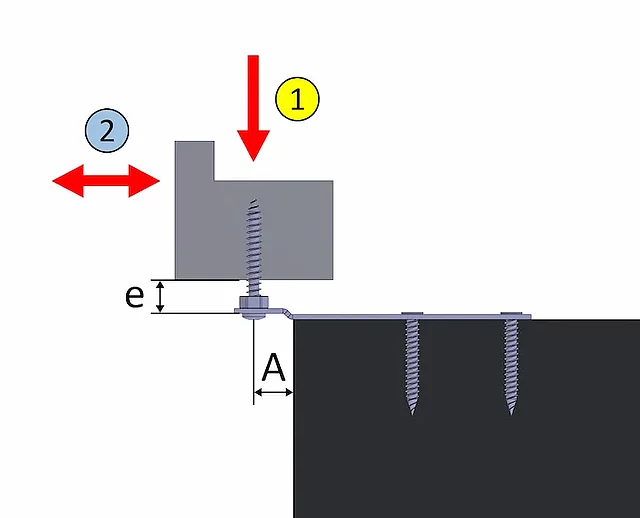

Load transfer, test reports

2 ift Rosenheim verification number
Tested for loads right-angled to the window layer:
19-002405-PR01 PB 01-K26-09-de-02

Tested gap with eMaximum load
20 mm92 kg
