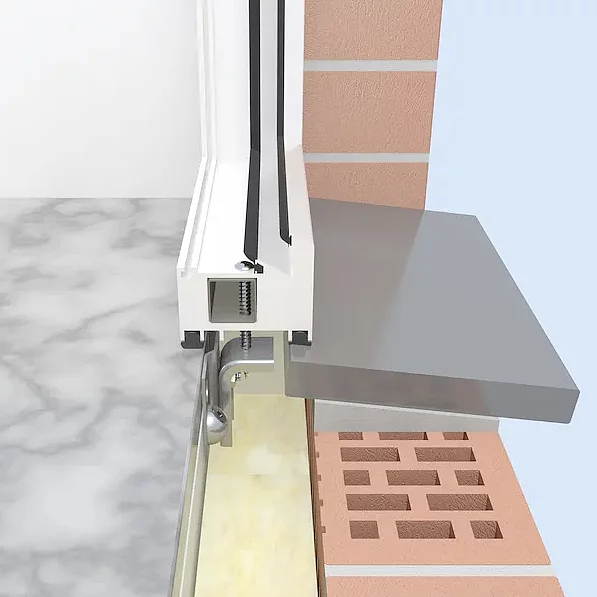

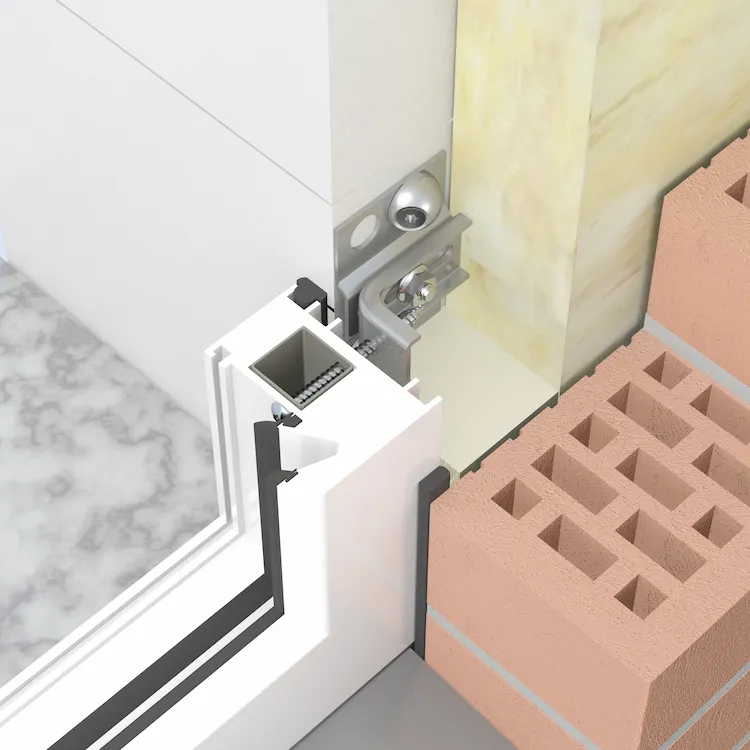

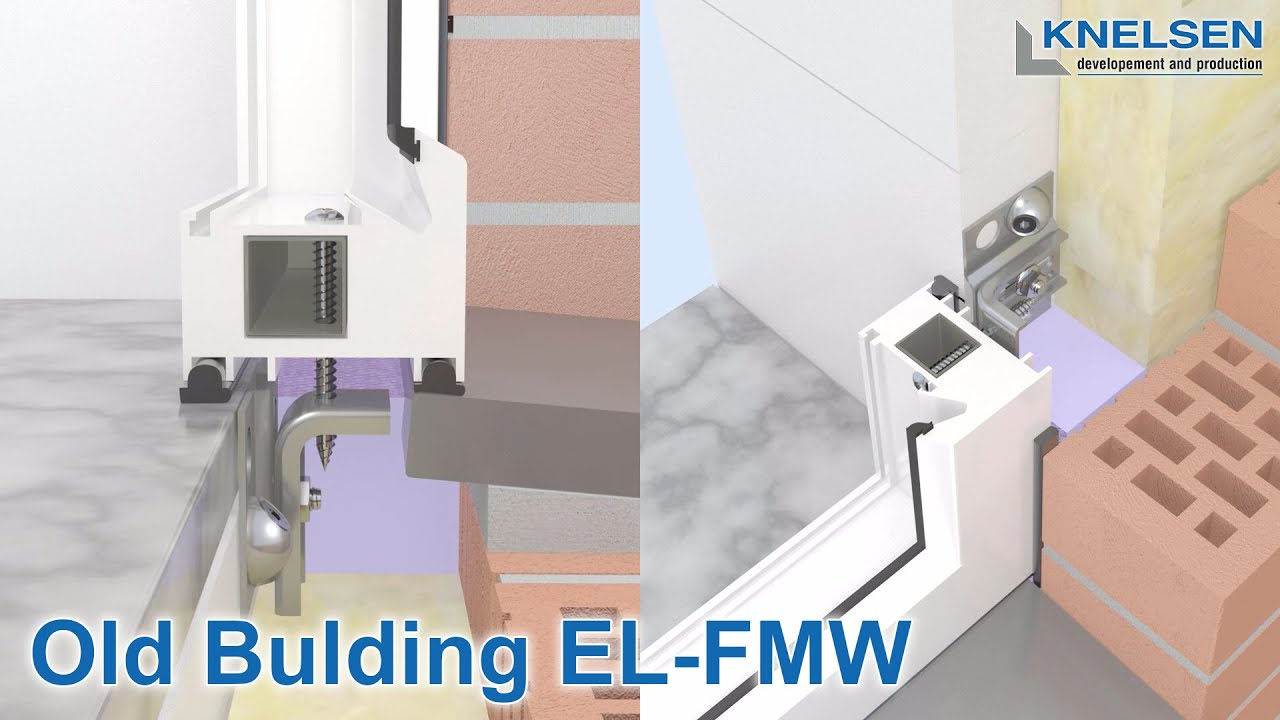

Altbau EL-FMW - Old Building EL-Window Mounting Angle

  • developed for old buildings
  • usage in new construction: reveal = exposed concrete
  • the reveal remains undamaged
  • direct screw connection through the window into the angle is immediately a wedging

Article sizes

Article-No.Article name [mm]
length 1 x length 2 x material thickness		UnitsDiagram

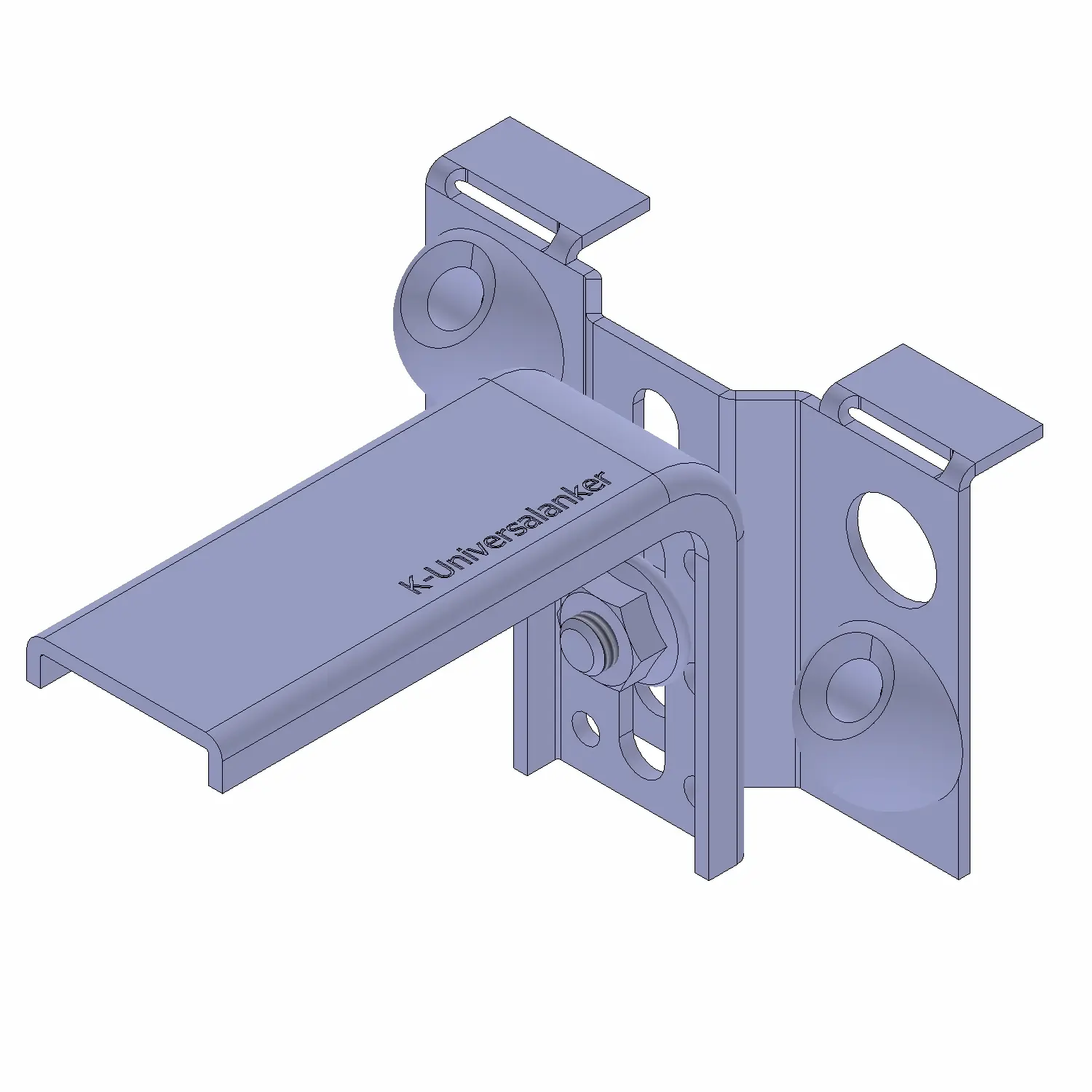

K-405230Altbau EL-FMW 65x95x2,525PDF
Scope of delivery per item: 1x mounting plate, 1x EL-FMW-65x95x2,5, 1x Carriage Bolt M8x16, 1x Flange Nut M8
