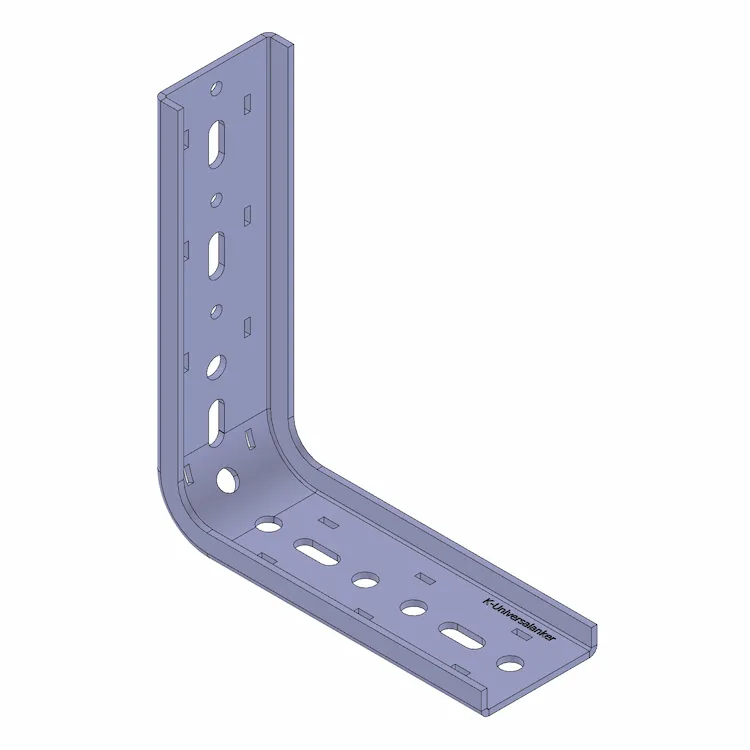

  • SL-U-W-170x200

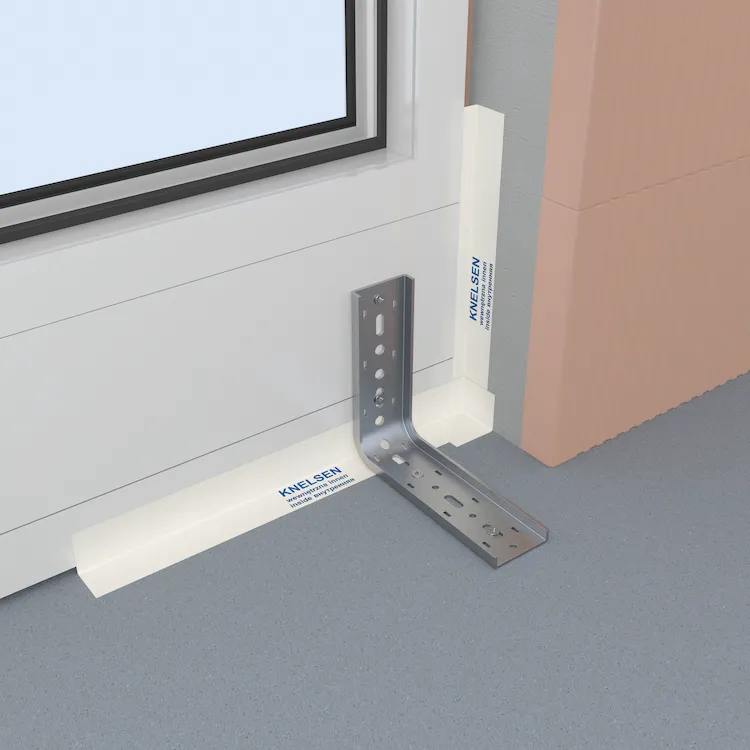

  • Connection profile with SL-U-W

SL-U-W - Heavy Load U-Profile Angle

Article sizes

Article-No.Article name [mm]Structure height [mm]UnitsDiagram
K-40526530SL-U-W-115x155130 - 21525PDF
K-40526550SL-U-W-170x200185 - 26025PDF

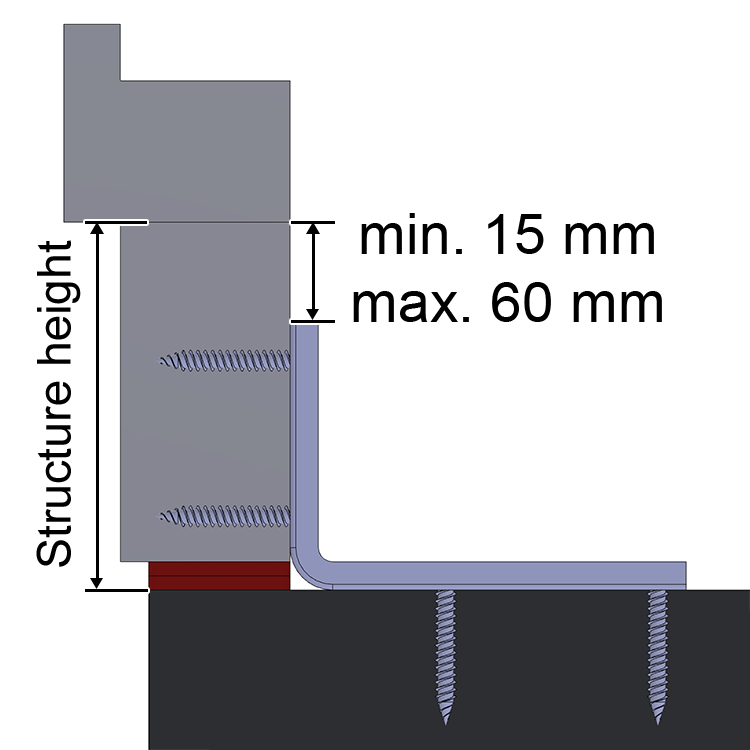

The angles can be attached to the connection profile with the short or the long leg, depending on the height of the structure.
