HST-SL-Console – Lift-up Sliding Door-Heavy Load Bracket

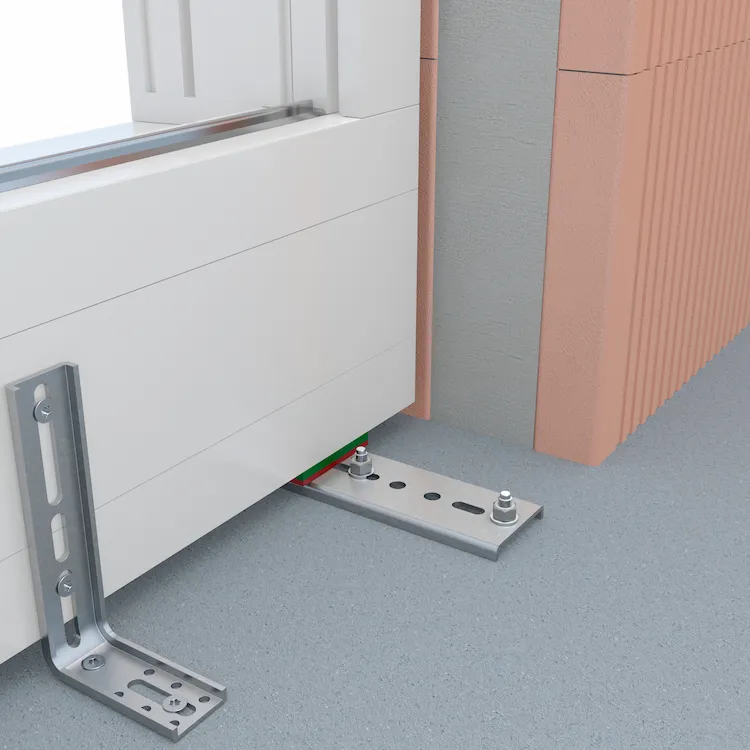

  • for mounting underneath floor-depth elements, in particular lift-up sliding doors
  • simple and fast mounting in case of an already existing insulating layer
  • offers high load transference
  • secure fixing of the window to the concrete floor
  • maximum load tested by ift Rosenheim

Article sizes

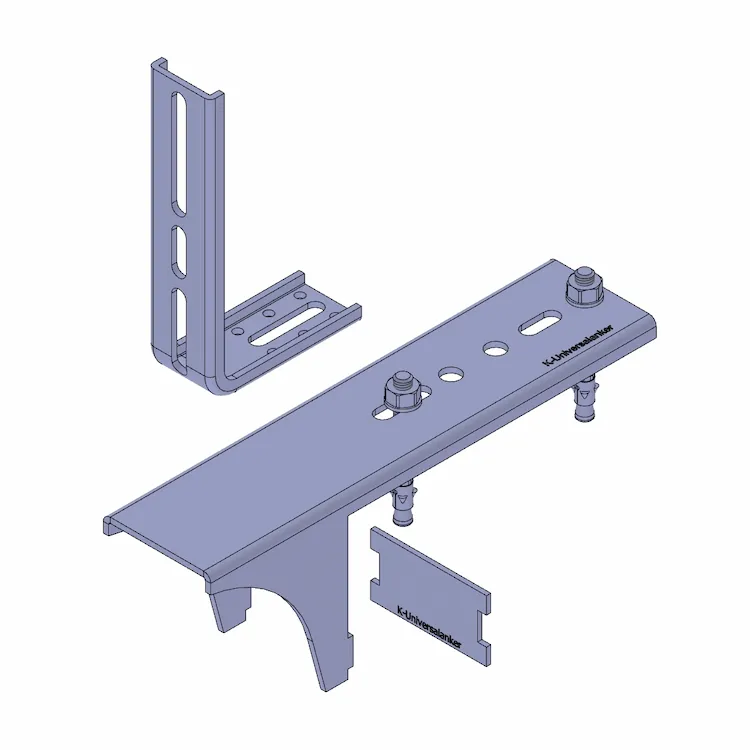

HST-SL-Console with connecting angle and heavy-duty dowels

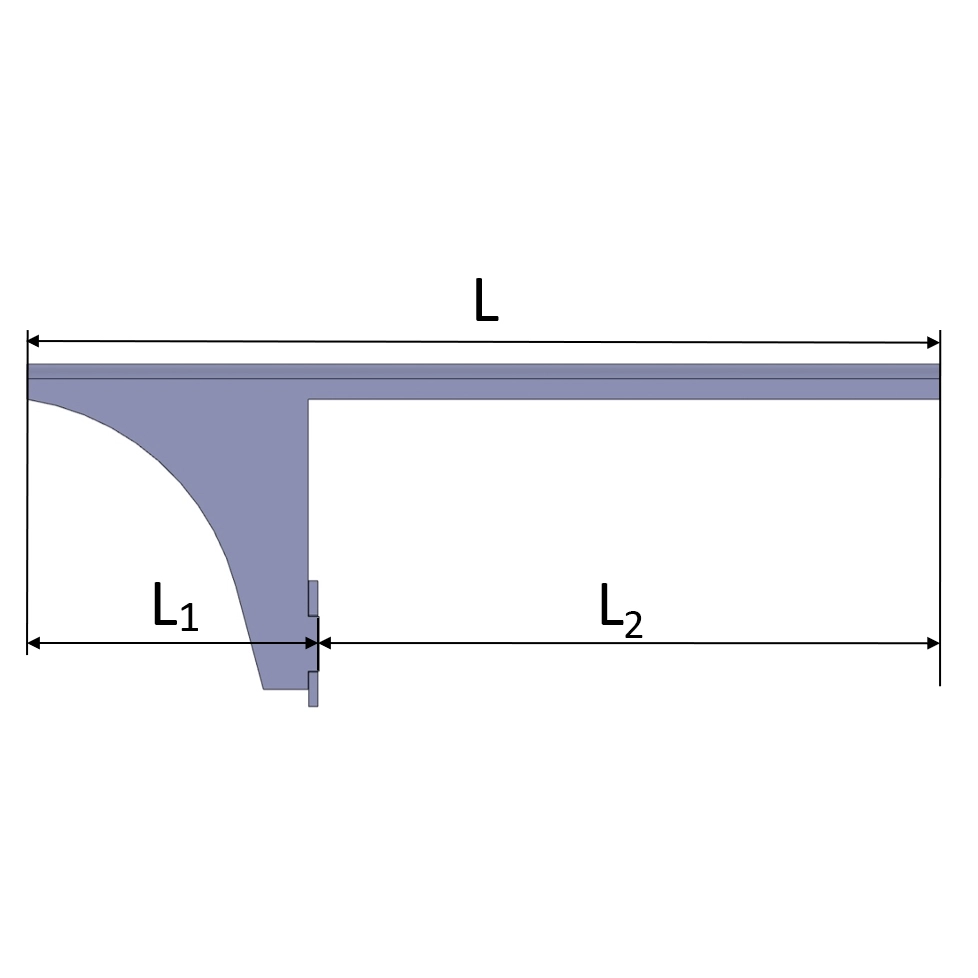

Article-No.Article name [mm]L [mm]L1 [mm]L2 [mm]UnitsDiagram
K-405216HST-SL-Console 250-80- Set250801705PDF
K-405217HST-SL-Console 300-125- Set3001251755PDF
K-405218HST-SL-Console 350-175- Set3501751755PDF
K-405219HST-SL-Console 400-225- Set4002251755PDF
Scope of delivery per item: 1x HST-SL-Bracket, 1x HST-SL-Protection Plate, 1x Connecting Angle-65x145x3,0, 2x Heavy-Duty Dowel Ø8x71
Article-No.Article name [mm]L [mm]L1 [mm]L2 [mm]UnitsDiagram
K-40521410HST-SL-Console 250-80250801705PDF
K-40521420HST-SL-Console 300-1253001251755PDF
K-40521430HST-SL-Console 350-1753501751755PDF
K-40521440HST-SL-Console 400-2254002251755PDF
Scope of delivery per item: 1x HST-SL-Console, 1x HST-SL-Protection Plate

Load transfer, test reports

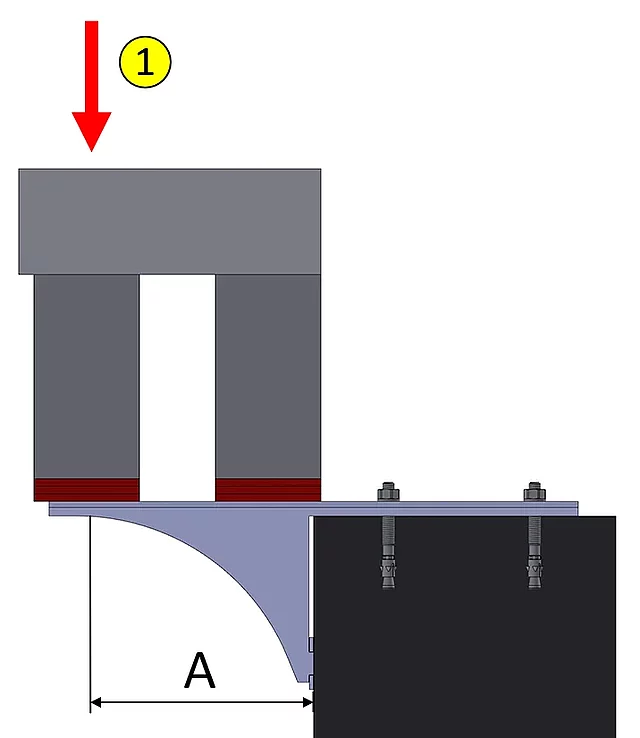

HST-SL-Console Load transfer

1 ift Rosenheim verification number
Tested for loads in the window layer:
17-001190-PR01 PB 04-K26-09-de-01, 18-003796-PR04 PB-K26-09-de-01

overhang Amaximum load
50 mm622 kg
95 mm622 kg
145 mm551 kg
195 mm284 kg

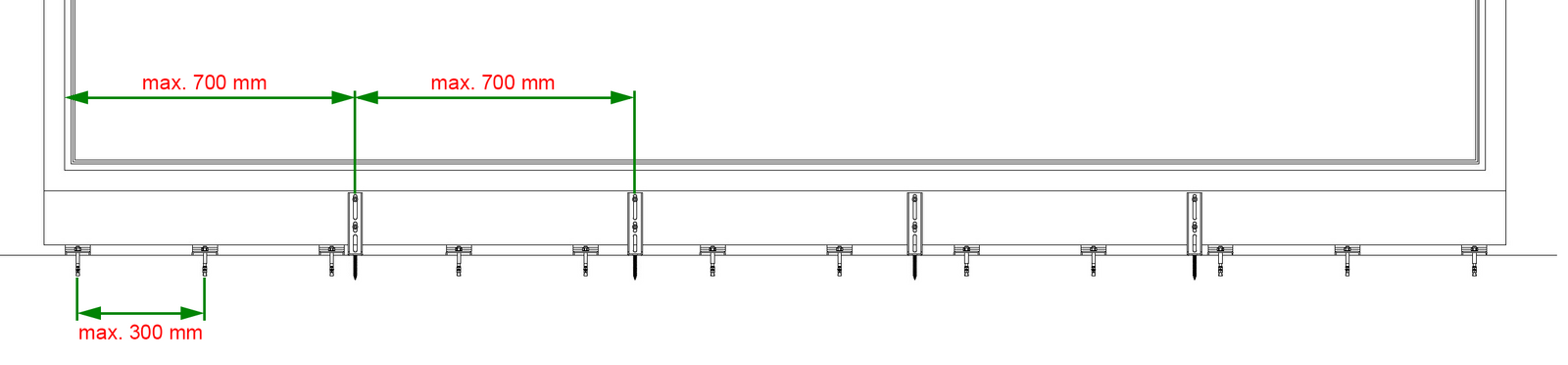

HST-SL-Console fixing points
mounting distance; tested measurements
