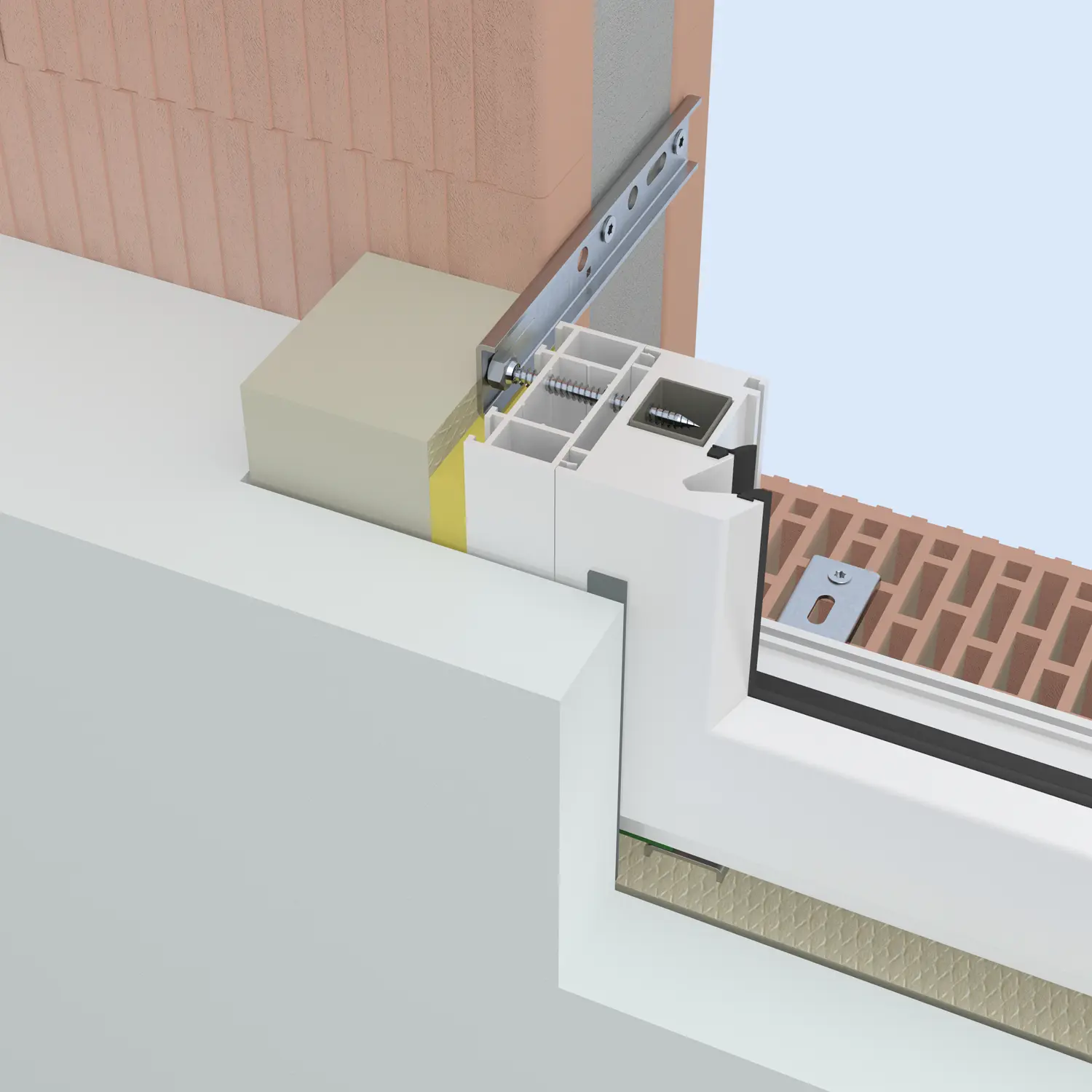

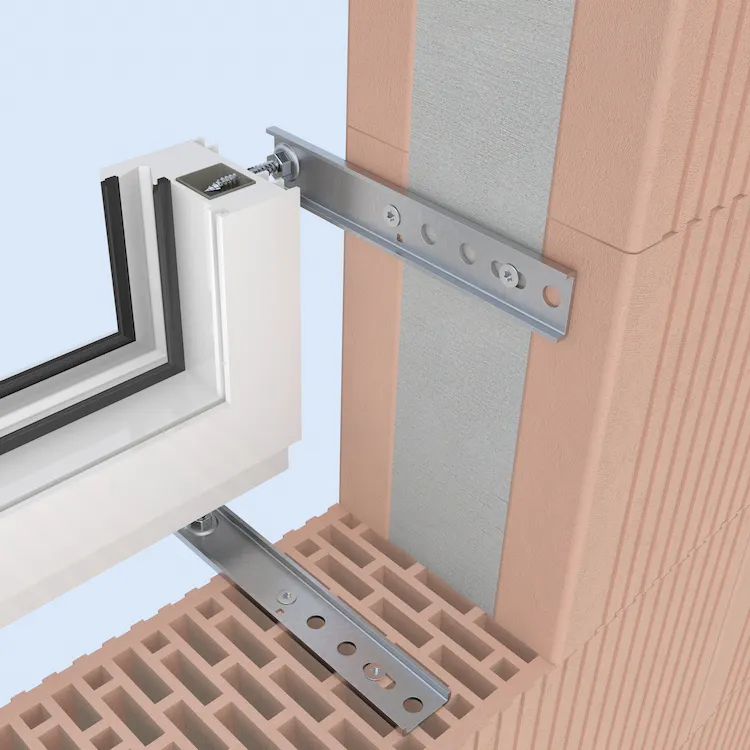

FMS-Anchor - U-Profile
- suitable for all window systems (aluminium, wood, plastic)
- window mounting without visible dowel holes is possible
- well-suited for fixed windows with glued in glazing
- easily adjustable blocking
- maximum load tested by ift Rosenheim
- suitable for fall-proof window mounting
- resistance class RC2 tested from a material thickness of 2.5 mm, PIV test number: 45-6/21
Article sizes
| Article-No. | Article name [mm] length x material thickness - screw | screw | Units | Diagram |
|---|---|---|---|---|
| K-149110 | FMS-150x1,5-U-7,5x060 | Ø7,5 x 60 mm | 50 | |
| K-149113 | FMS-150x1,5-U-7,5x090 | Ø7,5 x 90 mm | 50 | |
| K-149120 | FMS-150x2,5-U-7,5x060 | Ø7,5 x 60 mm | 50 | |
| K-149130 | FMS-200x1,5-U-7,5x060 | Ø7,5 x 60 mm | 50 | |
| K-149140 | FMS-200x2,5-U-7,5x060 | Ø7,5 x 60 mm | 50 | |
| K-149160 | FMS-250x2,5-U-7,5x060 | Ø7,5 x 60 mm | 50 | |
| K-149170 | FMS-300x3,0-U-7,5x060 | Ø7,5 x 60 mm | 50 | |
| K-149180 | FMS-350x3,0-U-7,5x060 | Ø7,5 x 60 mm | 50 |
Additional screw lengths are available on request.
1 ift Rosenheim verification number

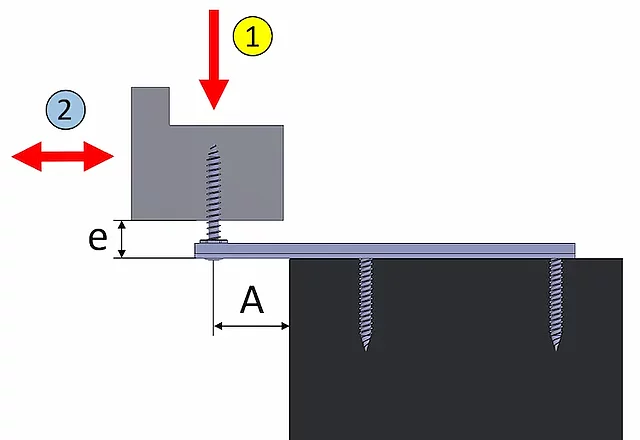

Tested for loads in the window layer:
11-003442-PR06 PB-K26-09-de-01, 14-002150-PR01 PB-K26-09-de-01, 18-003796-PR01 PB-K26-09-de-01
| material thickness | maximum load / overhang A | |||||
|---|---|---|---|---|---|---|
| 30 mm | 50 mm | 70 mm | 100 mm | 130 mm | 160 mm | |
| 1,5 mm | 136 kg | 80 kg | 44 kg | - | - | - |
| 2,5 mm | 175 kg | 110 kg | 58 kg | 27 kg* | 14 kg* | 8 kg* |
| 3,0 mm | 208 kg* | 160 kg* | 114 kg | 44 kg | 27 kg | 14 kg |
*approximate value based on test reports
