EL-Anchor - U-Profile

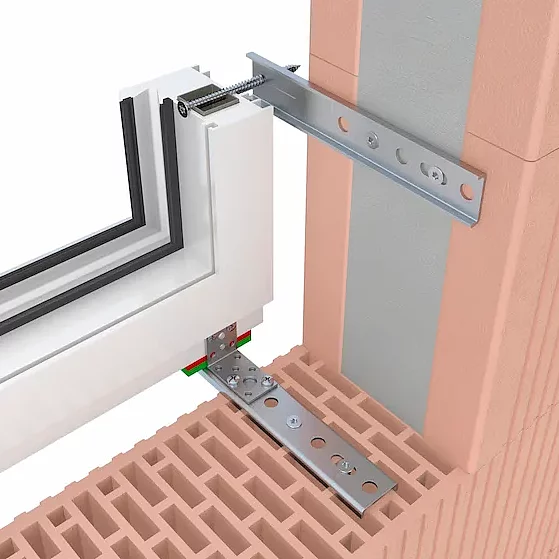

  • Simple and fast mounting of windows in the insulation layer
  • Suitable for all systems (aluminum, wood, plastic)
  • The direct screwing through the window, into the anchor is a proved wedging
  • Simple handling during modifications or when replacing the window
  • Certified mounting to the masonry (hollow chequer brick, aerated concrete brick)
  • Window mounting in accordance with resistance class RC2
  • Suitable for fall-proof window mounting
  • Maximum load tested by ift-Rosenheim

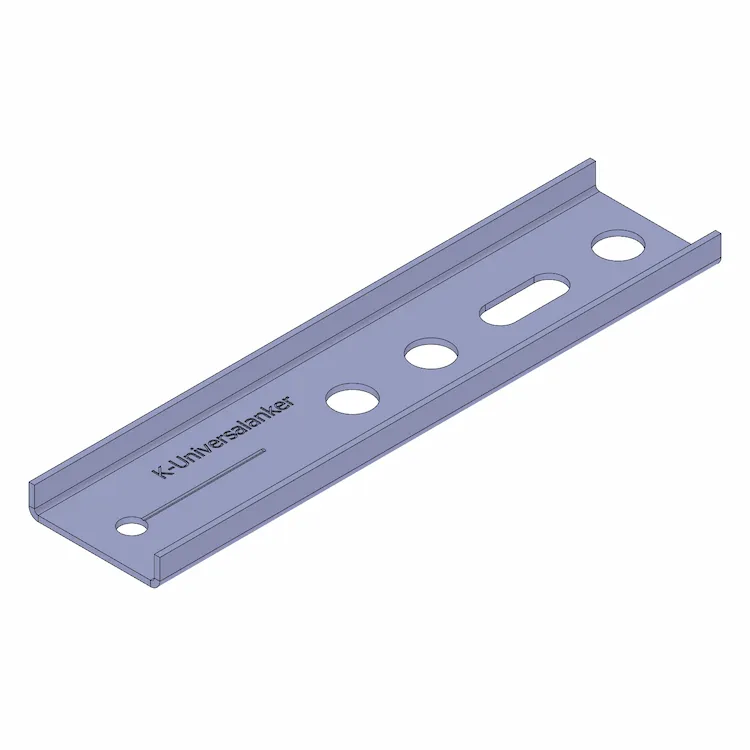

Article-No.Article name [mm]Units / PUDiagram
K-405100EL-150x1,5 U-Profile50 PDF
K-405100-1EL-150x2,5 U-Profile50 PDF
K-405102EL-200x1,5 U-Profile50 PDF
K-405104EL-200x2,5 U-Profile50 PDF
K-405104-1EL-200x3,0 U-Profile50 PDF
K-405105EL-250x1,5 U-Profile50 PDF
K-405106EL-250x2,5 U-Profile50 PDF
K-405106-1EL-250x3,0 U-Profile50 PDF
K-405107EL-300x3,0 U-Profile50 PDF
K-405108EL-350x3,0 U-Profile50 PDF

1: ift-Rosenheim verification number
Tested for loads in the window layer: 11-003442-PR06, 14-002150-PR01, 18-003796-PR01

Material thicknessMaximum load / bearing out A
30 mm50 mm70 mm100 mm130 mm160 mm
1,5 mm136 kg80 kg44 kg  -  -  -
2,5 mm175 kg110 kg58 kgca. 27 kgca. 14 kgca. 8 kg
3,0 mmca. 208 kgca. 160 kg114 kg44 kg27 kg14 kg

ift-Rosenheim verification number
Tested for loads right-angled to the window layer: 18-000650-PR01

Tested gap with emaximum Load
15 mm227 kg
