• UnPro

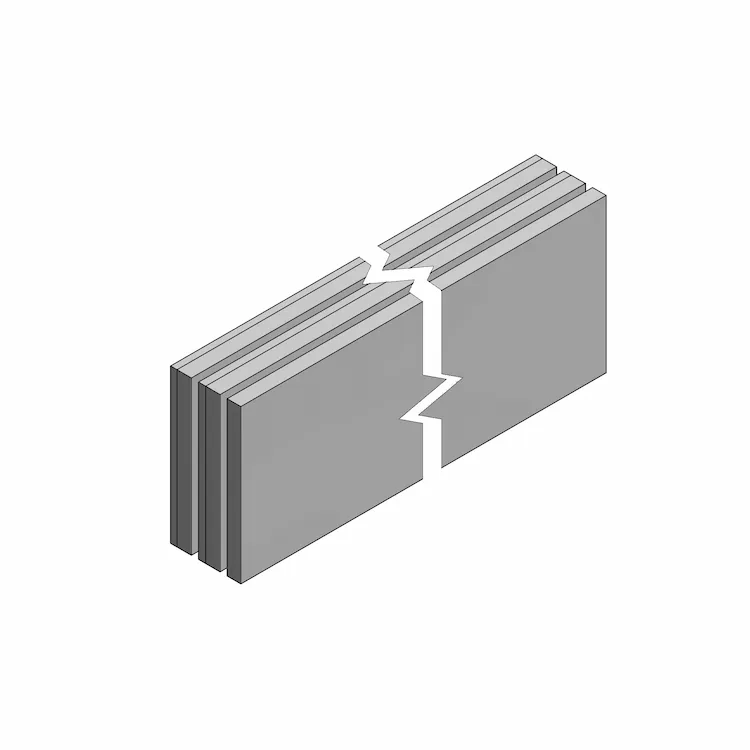

UnPro

  • screwable core
  • individual production for all blind frame and ground sill systems
  • length: 1,20 metres can be modified arbitrarily by plug system
  • proved for the fall-proof window mounting by ift Rosenheim:  18-003796-PR05 PB-K26-09-de-02
  • other dimensions and millings on request

Technical Data

  • Compressive strength 20 kN / cm²
  • Screws-extraction values: 2.65 kN
  • Core density: 0.39 g / cm³
  • U-value: approx.1.0 W / (m²K)
  • Water absorption according to EN ISO 62: 4.5%
  • SD-value: <156 m
  • Fire behavior: class B in accordance with DIN EN ISO 4102-1

Articles sizes

Article-No.Article name [mm]
length x material thickness		Diagram
K-406268K-UnPro-49x35x1200, white PDF
K-406276K-UnPro-49x48x1200, white PDF
K-406283K-UnPro-49x73x1200, white PDF
K-406291K-UnPro-49x112x1200, white PDF
K-406299K-UnPro-49x149x1200, white PDF

Deliverable within 10 working days after receipt of order.
