• RK-Fixed-RA

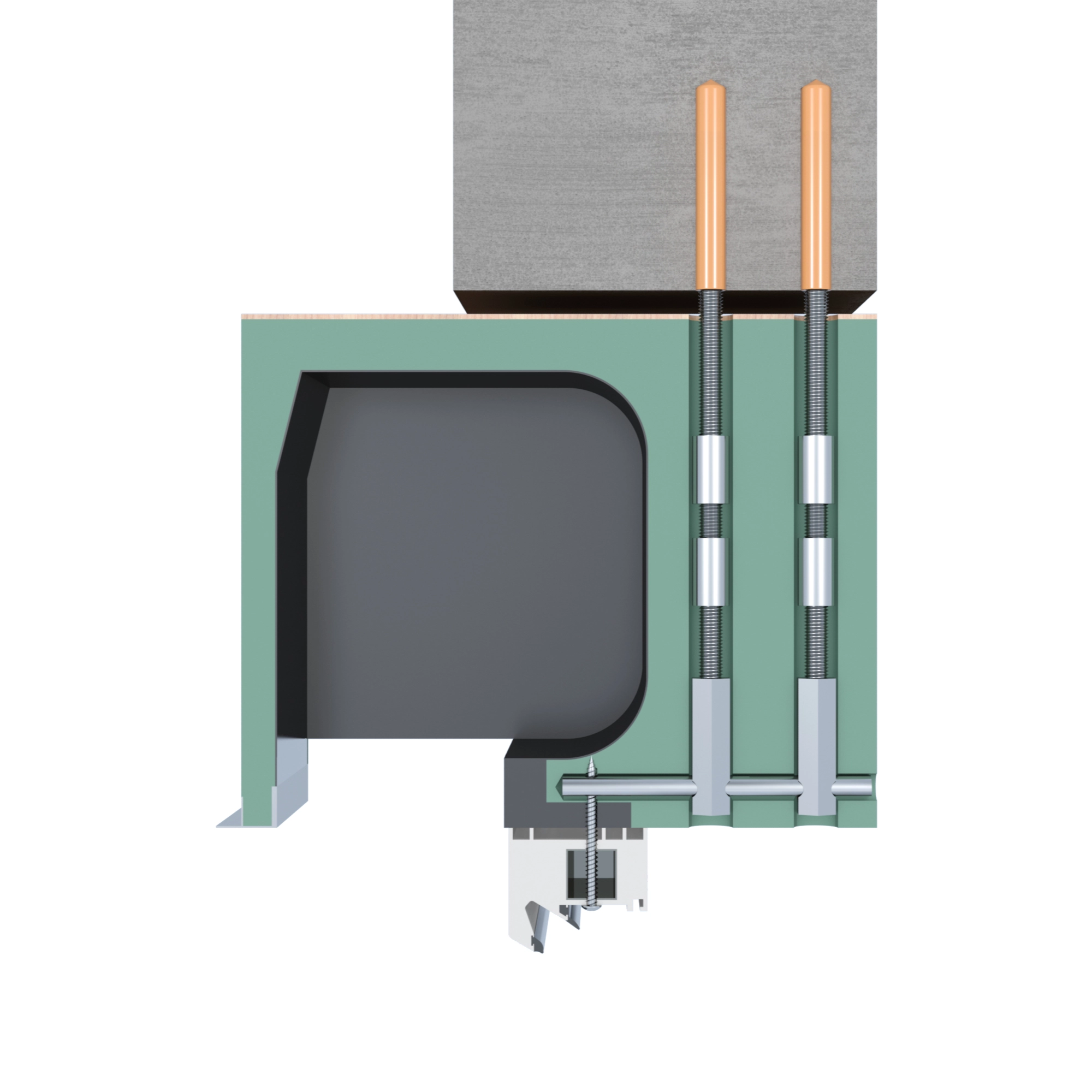

  • RK-Fixed-RA twice
  • RK-Fixed-RA-16x400

RK-Fixed-RA - Inspection box, external

  • for upward mounting in case of external blind systems and the external inspection of roller shutter boxes
  • simple and quick mounting, even for retrofitting
  • mounting position is cut free by drilling
  • transfers forces (wind load, opening and closing of casements) directly to the internal concrete ceiling or lintel

Article sizes

Article-No.Article name [mm]UnitsDiagram
K-400360RK-Fixed-RA-16x40010 PDF
K-400362RK-Fixed-RA-16x46010 PDF
Scope of delivery per item: 3-4x threaded bolt: 1x M16 with shovel, 1x M16 with drive, 1-2x M16x100, 2-3x connecting nut M16x40,
1x V-Static Tube Ø15x200, 2x grub screw M16x12, 1x hexagon SW22 M16x80, 1x reaction cartridge M16
