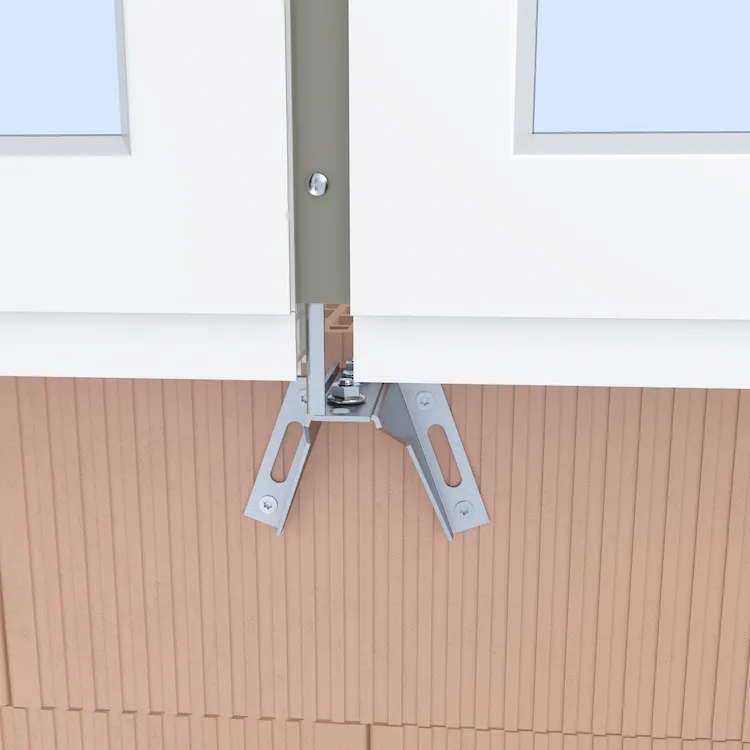

• KP-Holder with WS-Console

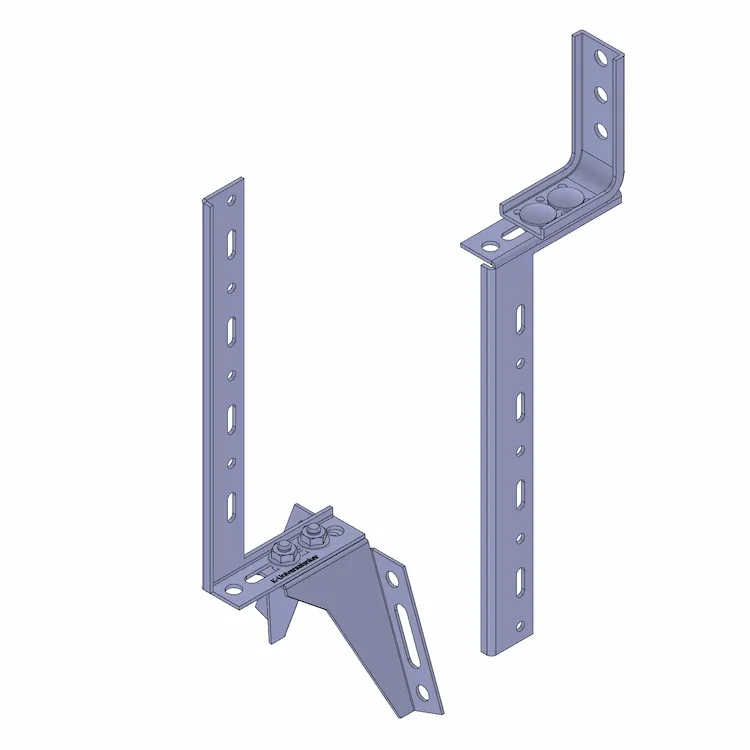

  • KP-Holder-100x270x2,5 + mounting

KP-Holder - Coupling Profile Holder

  • for the simple mounting of coupling profiles
  • suitable for all systems
  • various combination options with all K-Universal anchors

Article sizes

Article-No.Article name [mm]
length 1 x length 2 x material thickness		UnitsDiagram
K-405051KP-Holder-100x270x2,510PDF
K-405052KP-Holder-100x270x2,5 + mounting10PDF
Scope of delivery for K-405052: 10x KP-Holder-100x270x2,5, 40x Flange Nut M8, 40x Carriage Bolt M8x16,
lower mounting: 5x WS-Bracket 65x110x2,0, upper mounting: 5x FMW 65x95x2,5

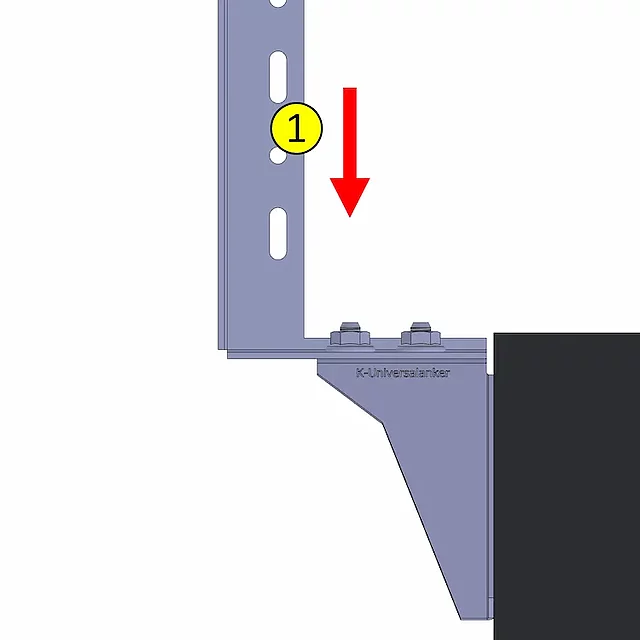

Load transfer, test reports

1 ift Rosenheim verification number
Tested for loads in the window layer: 11-003442-PR06 PB-K26-09-de-01

overhang Amaximum load
55 mm237 kg
