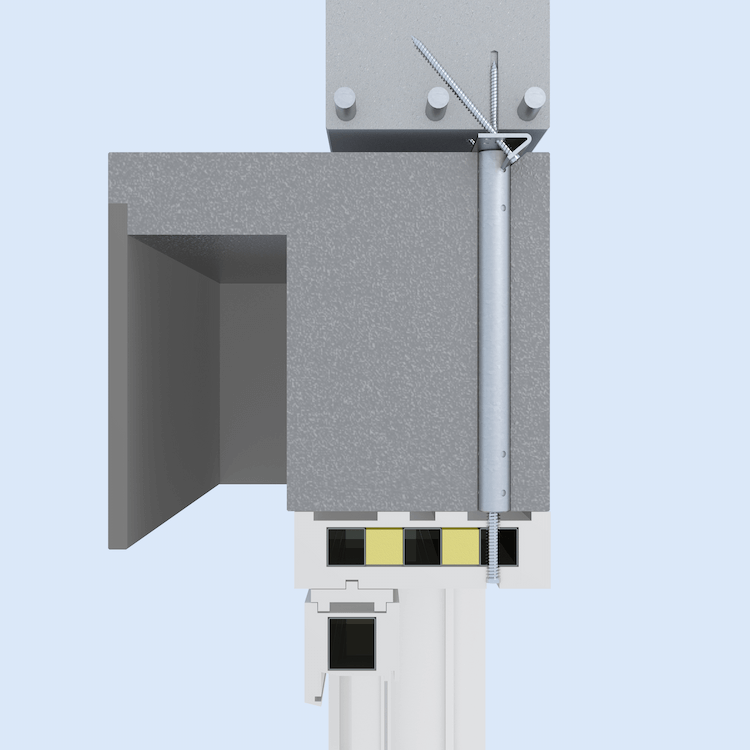

RK-Fixed-3S-HST - 3x Direct Screw Lift-Up Sliding Door
- suitable for all box systems
- the fixing positions are cut out by drilling
- is pre-assembled in the box
- a simple solution for fastening to the building structure with the Ø7.5 mm window mounting screw
- transfers forces (wind load, sash opening and closing) directly to the building structure
Article sizes
| Article-No. | Article name [mm] | tube length | Units | Diagram |
|---|---|---|---|---|
| K-40025705 | RK-Fest-3S-HST-280 | 280 mm | 5 | |
| Scope of delivery per item: 1x tube Ø25,0x280 + mounting plate-35x125, 1x Window Mounting Screw 11,5x110, 1x Window Mounting Screw 7,5x152, 2x Window Mounting Screw 7,5x122 | ||||
Additional sizes are available on request.
